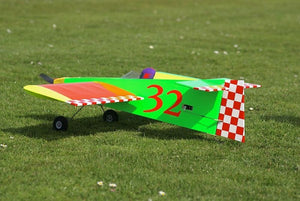

Wiggo

Regular price €89,00

Short kit for the RCM Wiggo
By Max Zuijdendorp
Fast building and easy flying

Design Features:

  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • One Piece Design Easy transportation
  • Motor compartment Easy accesable
  • Battery Acces Through fuselage hatch

Specifications:

  • Wing Area: 20 dm2
  • Wing Span; 900mm
  • Flying Weight: Starts at 600 grams
  • Wing Loading: 50gr dm2
  • 4 Channel ailerons & Elevator &Throttle, rudder

Complete Kit Includes:

  • Photo and Instructions on cd with lots of pictures
  • Full Size Rolled Cad Plans With All Parts Shown
  • All wood included
  • Vacuumformed Cowl
  • Building Jig, pre bend landing gear
  • Control Horns, Steering Cables, fasteners, hinges

Short Kit Includes:

  • Vacuumformed Cowl
  • CNC cut pack: 3 sheets balsa 3mm, half sheet balsa 6mm, sheets of cnc cut 3mm poplar ply, cnc cut 1,5mm aircraft grade ply for landing gear and steering arms

Required to Complete:

  • 4 Channel Radio.
  • Light weight Receiver
  • Light weight Servos: About 12 grams (4x)
  • Motor: 1000kv outrunner type suppo 2820-6 E-flite Power 15 or AXI Gold 2820/12
  • AXI Gold 2814/16, or Turnigy 35-36.
  • Speed controller 30 amps
  • Spinner 40mm
  • Battery: 3S or 2200 lipo
  • Thick and Thin CA glue
  • wheels

Short Kit additional requirements:
For Cutting:
1x 1,5 mm balsa 1000x100
1x 3 mm balsa 500x100

Stringers:
2x 8x3 mm balsa 810 (Wing Mainspars)
1x 8x8 mm balsa 810 (Wing Leading edge)
8x 4x4 mm balsa 400 (Wing stringers)
6x 6x6 mm balsa 1000 (diverse)
2x 12x6 mm balsa 1000 (diverse)

Misc:
2x 3 mm dia. Spring steel 265 (landing gear)
1x 1.5 mm spring steel 500 (tail wheel and controls)
piloot, some pvc for window
wheel collars 4x 3 mm, 2x 1,5 mm
