Verhees Delta

Regular price €89,90

Verhees Delta

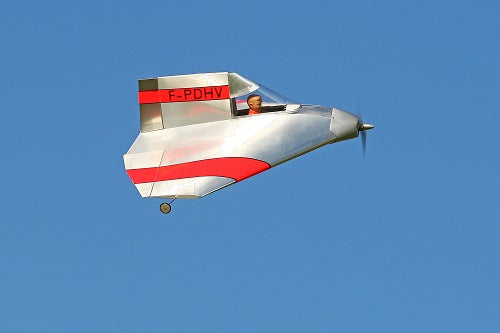

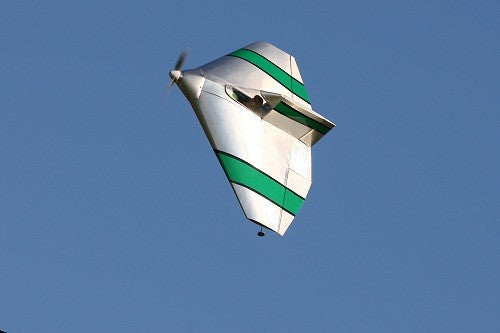

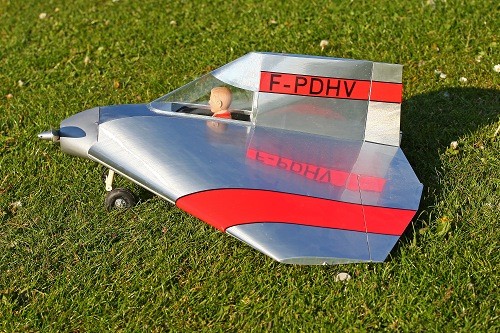

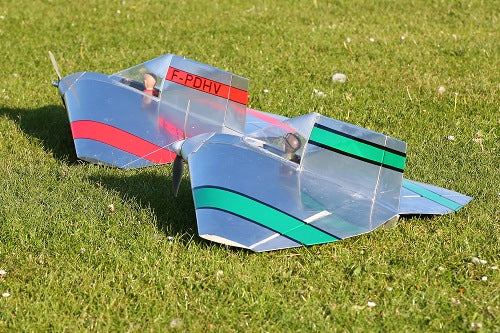

  • A scale model of the homebuild Verhees Delta
  • Max Zuijdendorp did the task of designing the model
  • All wood construction
  • Easy building kit all parts cnc cut
  • The Verhees Delta is a great flyer with motor and 3- lipo cells 1500-2200

Now in the rcm and E as free plan

Design Features:

  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • One Piece Design Easy transportation
  • Motor/Battery compartment Easy accessible
  • Battery Access Through hatch opening

Specifications:

  • Wing Area: 27 dm2
  • Wing Span; 752 mm
  • Flight Weight: Starts at 1000 grams
  • Wing Loading: 37gr dm2
  • 4 Channel Controls

Complete Kit Includes:

  • Photo Instructions on CD and Many more Pictures
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuumformed Cowl wheel cover
  • All cnc cut wood parts (balsa & ply)
  • Control Horns, steering cables, hinges

Short Kit Includes:

  • All cnc cut wood parts (balsa & ply)

Required to Complete:

  • 4 Channel Radio
  • Light weight Receiver:
  • Light weight Servos: About 13grams (2x ailevons 1x rudder)
  • Motor: type :35-1000kv 9" prop
  • 35 amp controller
  • Some paint,foil finish
  • Retract set HK-15090S
  • Main retract gear leg and 50mm wheel
  • Battery: 3S 1500-2200 lipo
  • Thick and Thin CA glue 3 bottles
  • Grass or concrete airfield

Nice woodbuilding kit, not for a beginner in building

Easy acces to motor and battery

The main gear leg is seperate available or print yourself from shapeways details on the cd

Rewarding wood building



Nose Gear Leg, not standard included in the complete kit and short kit
