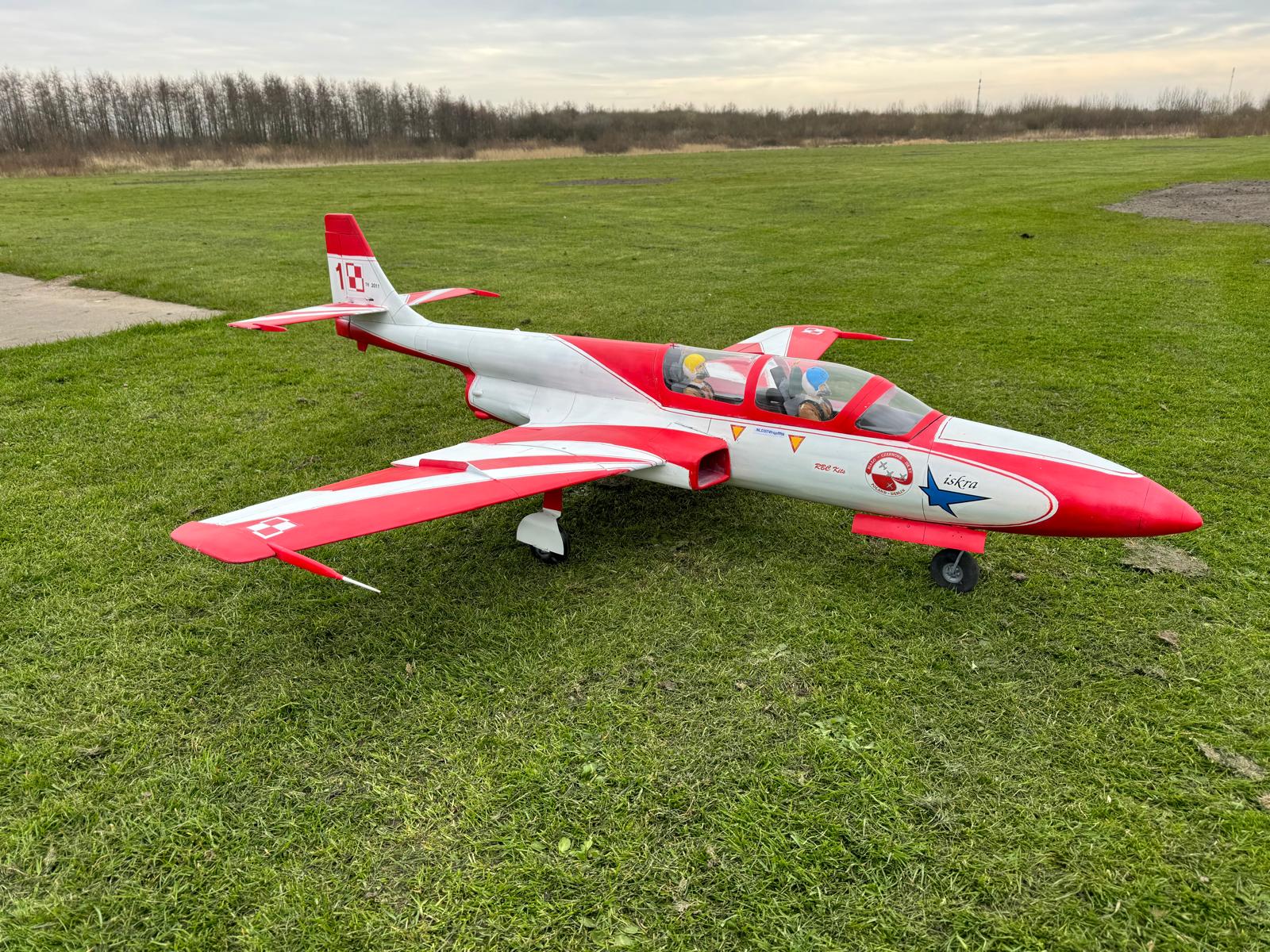

TS11-Iskra
For 100mm Midi fan Evo edf and 8 cells 5000
Why a 100mm fan ?
The 100mm gives a lot of thrust and not to much speed but just right as you can see
A 90mm version is also available .we advise then Midi Fan Evo Hetrc EDF650/68/1600 8s
If you want a 90mm version please state this when ordering it has different formers and ducts
The Iskra is easy to fly but not for beginners or beginner builders
The Iskra is a lot of work to build , but very rewarding
In the instructions download are many 3d print files for the canopyseats and dashboard
And the print details for the decals
Full pictures and instructions download here
First flight movie here
Wingspan :1650mm
Wingarea :47,5dm
Length :1798mm
Our flying weight 5kg
2 packs HRB 4S5000
1 lipo pack 3s1500 for retracts (optional)
1 nimh 2000 pack for receiver (optional)
wemotec midi fan evo 100mm with hetrc edf 700-68-1400
4,7kg if you take all voltage from flight batteries
6 Channel , Ailerons,elevator,Throttle,Retracts, flaps,nosewheel steering,rudder
Kit Includes:
Photos and Instructions download
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy,nosecone,wingtips, ducting,Paper inlet and outlet ducting

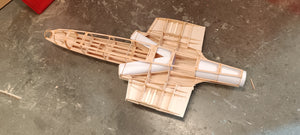

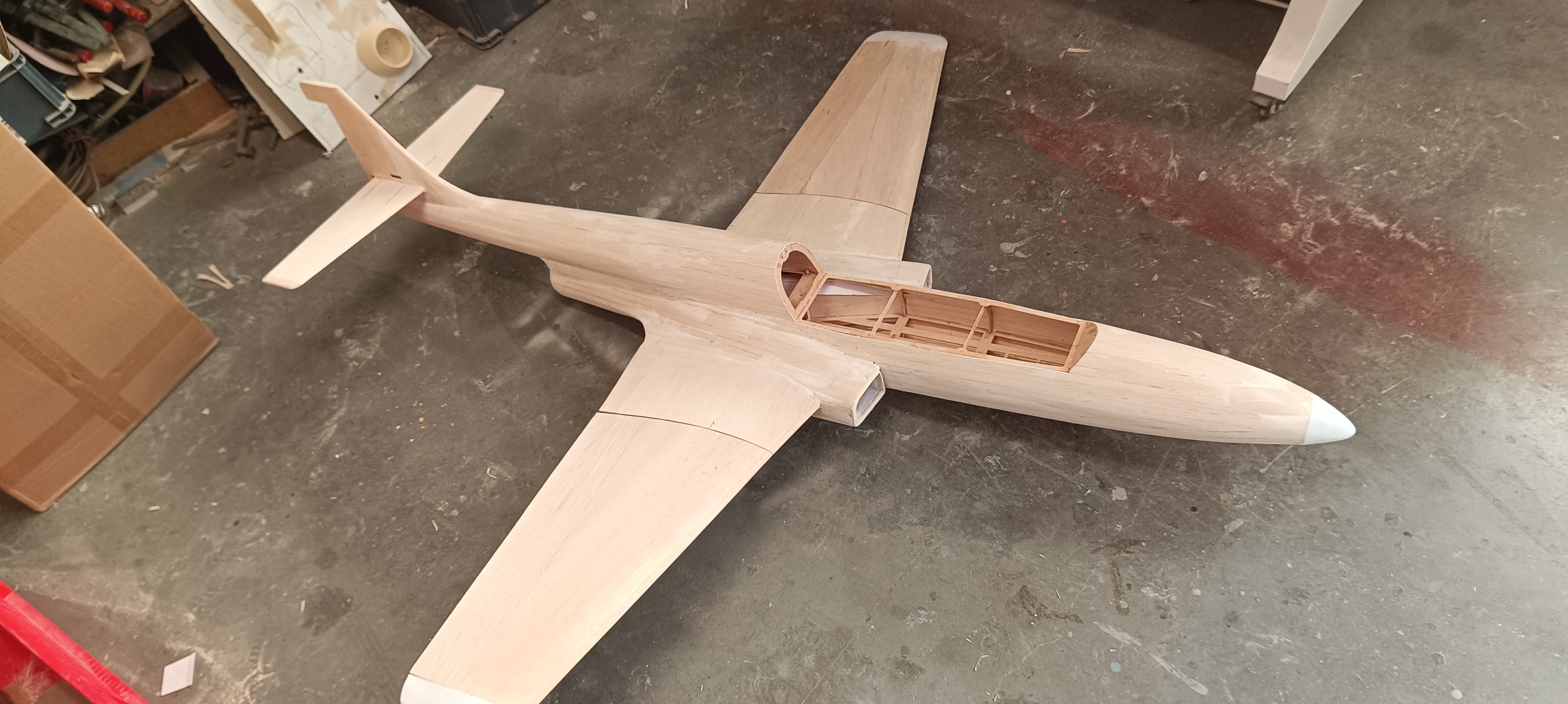

All wood and sheeting to make the Iskra 6 sheets of balsa 14 sheets of lite ply
spruce and balsa stringers
248 cnc cut ply and balsa parts There is no hardware in the Iskra like hinges and horns etc etc
Required to Complete:
Any 8 Channel Radio
Light weight Receiver:
Servos: About 13 grams metal gear flaps needs stronger type 30gr
wemotec midi fan evo 100mm with hetrc edf 700-68-1400
Battery:8S lipo 5000ma or 2 packs 4S
Thick and Thin CA glue, 3/3
Small parts screws etc are not in kit ; a list of parts is included
