Siebel 202C

Regular price €259,00

The Siebel 202C - Scale 1:5
Together with Dick van Mourik who has taken a lot of time to get the scale drawings right, we designed a very nice semi scale kit. You will only find this design and model by RBCkits.

Design Features:

  • All Formers And Ribs CNC Cut
  • Building frame supplied
  • Unique Tab Lock Design
  • 3 Piece Design, stick on wings and removable
  • Stabilizer and rudder fro transportation

Specifications:

  • Wing Area: 58 dm2
  • Wing Span; 2137 mm
  • Length :1290mm
  • Flight Weight: Starts at 3800 grams
  • 4 Channel, ailerons, Throttle, Elevator, Rudder
  • Stick on wings, Rudder and Horizontal stabilizer
  • are removable for easy transportation

Kit Includes:

  • Photo Instructions on CD
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuumformed Canopy, Motor Cowl
  • Pre Bent Landing gear, you need to solder, and ad schocks
  • Control Horns, Wing joiner tube
  • All wood parts

Required to Complete:

  • Any inexpensive 4 Channel Radio
  • Light weight Receiver
  • Power used on prototype
  • Motor: Turnigy Aerodrive SK3 - 5055-430KV
  • Controller: HobbyKing Red Brick 100A ESC 5VBEC V2
  • Servos: Corona DS339MG Digital Metal Gear Servo 4.4kg / 0.15sec / 32g
  • 5 cells 5000ma
  • Propeller Graupner E 17x10 Current 42 amp
  • Thick and Thin CA glue

Here are some build pictures:

Build up wing

All balsa/spruce construction

build up rudder and satbilizer

All balsa

fuselage is build around the cockpit

Balsa ply build up scale construction

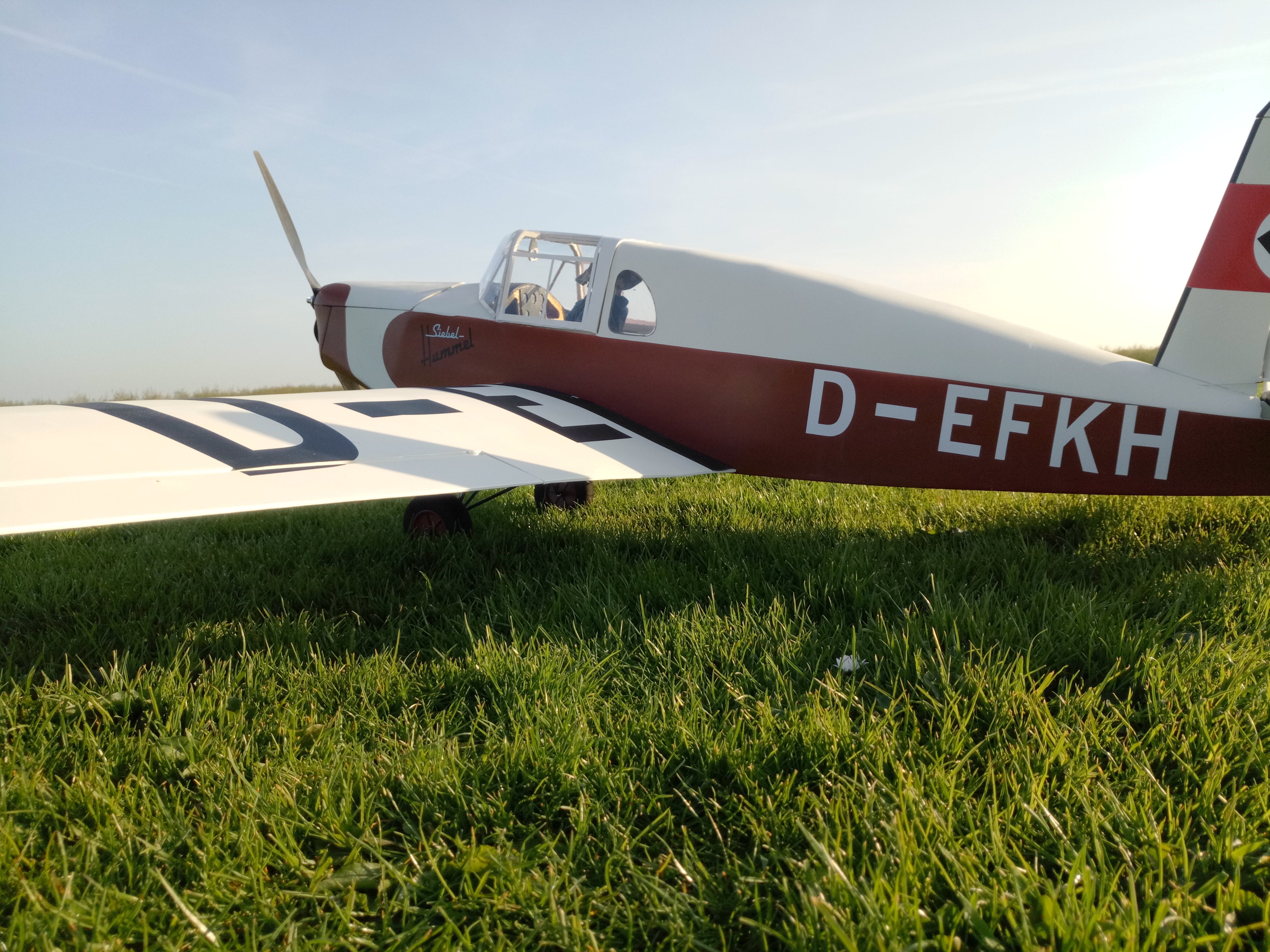

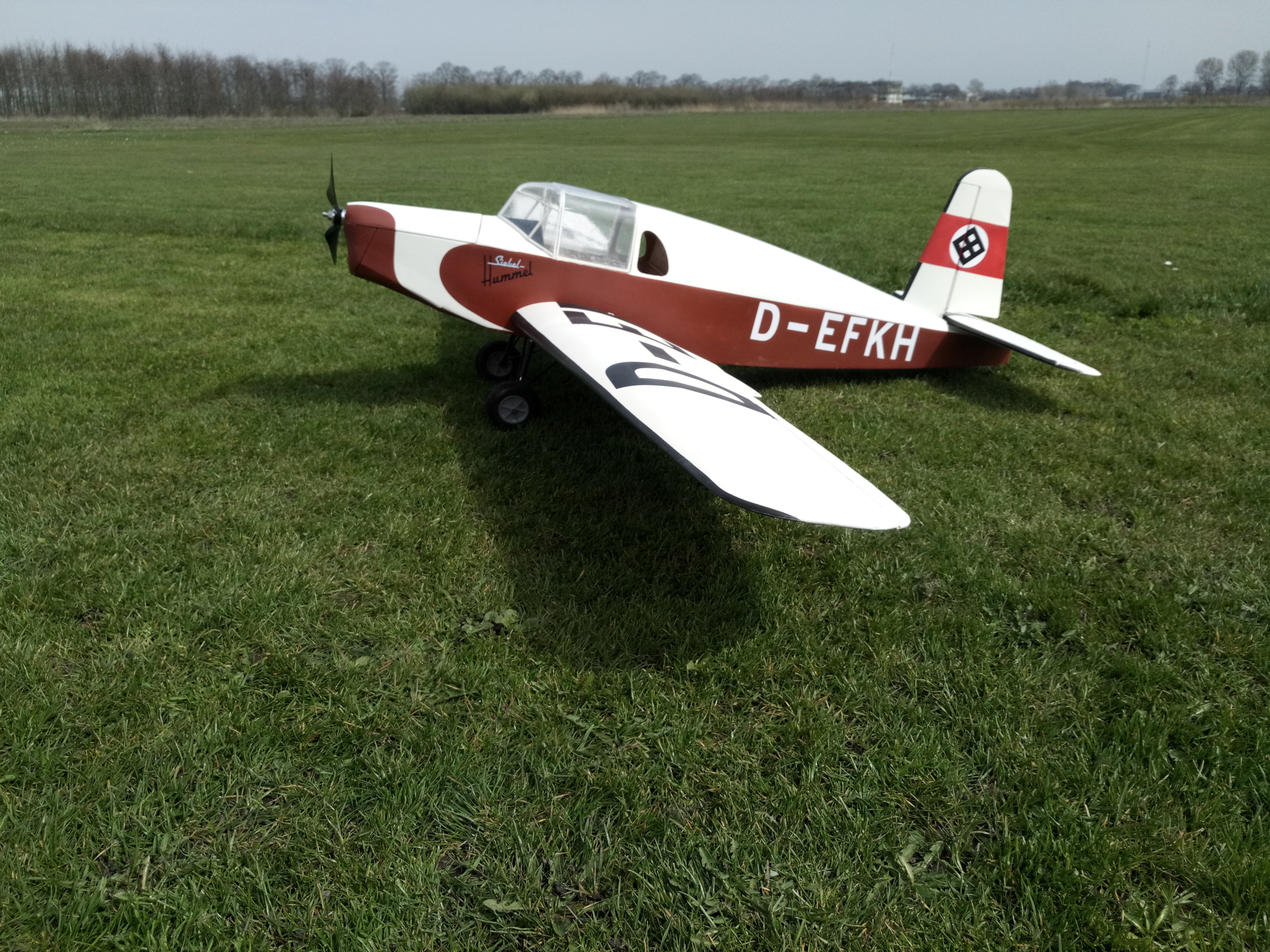

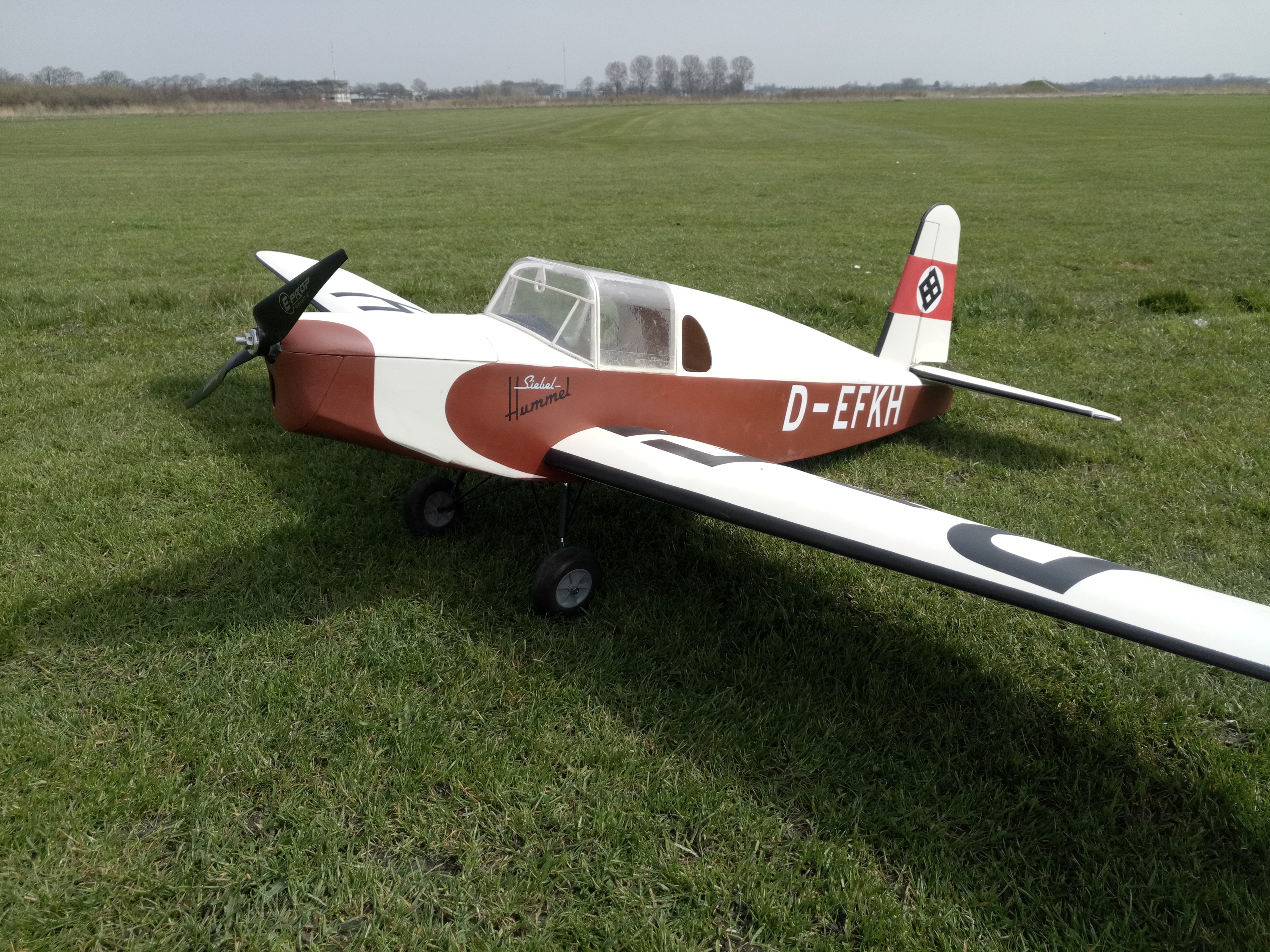

Pre bent landing gear, uses cheap schocks, and they work scale like

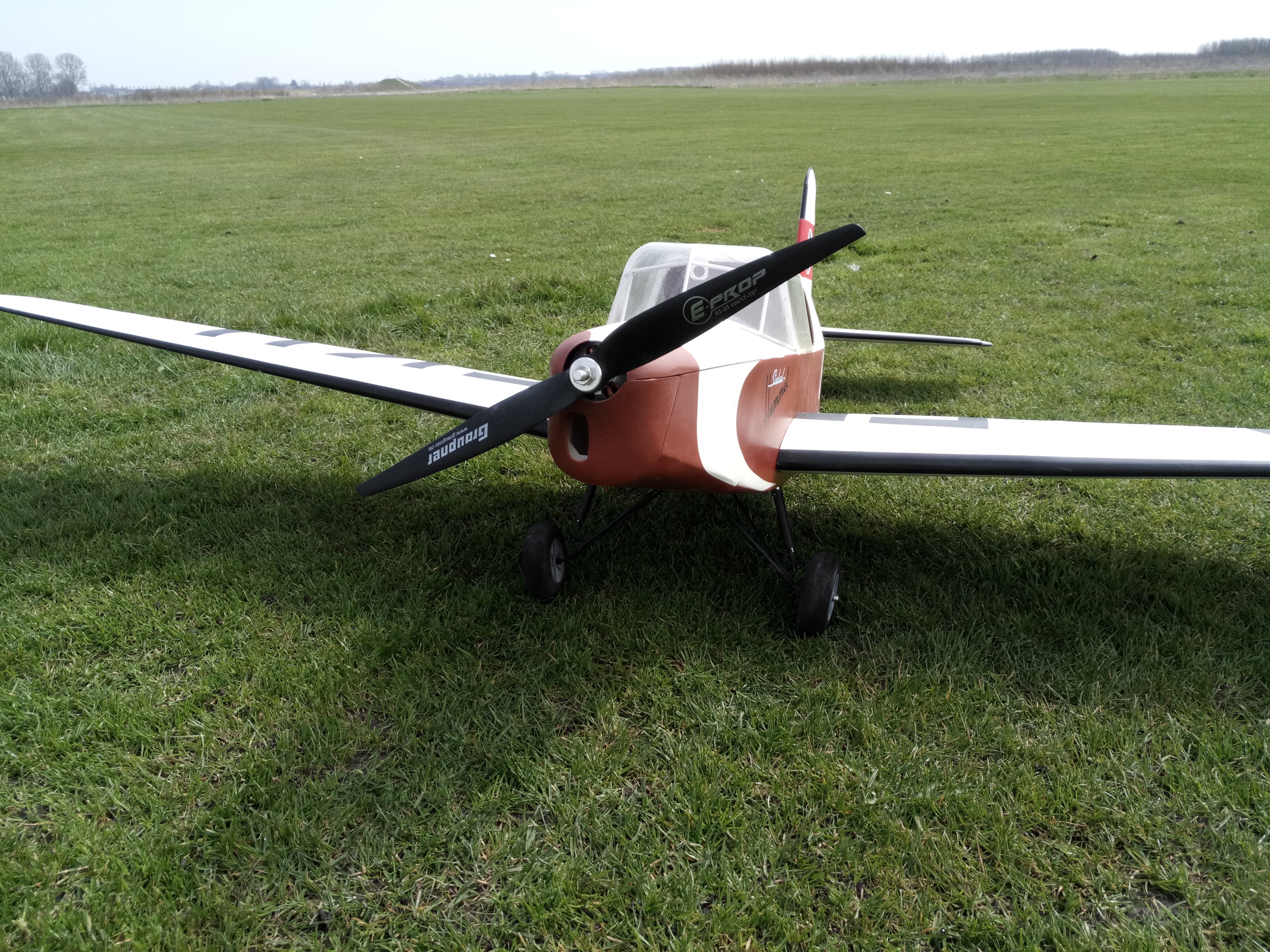

Easily accessible motor space, cowls are removable

Dummy seats are in the kit, battery accessible through the canopy

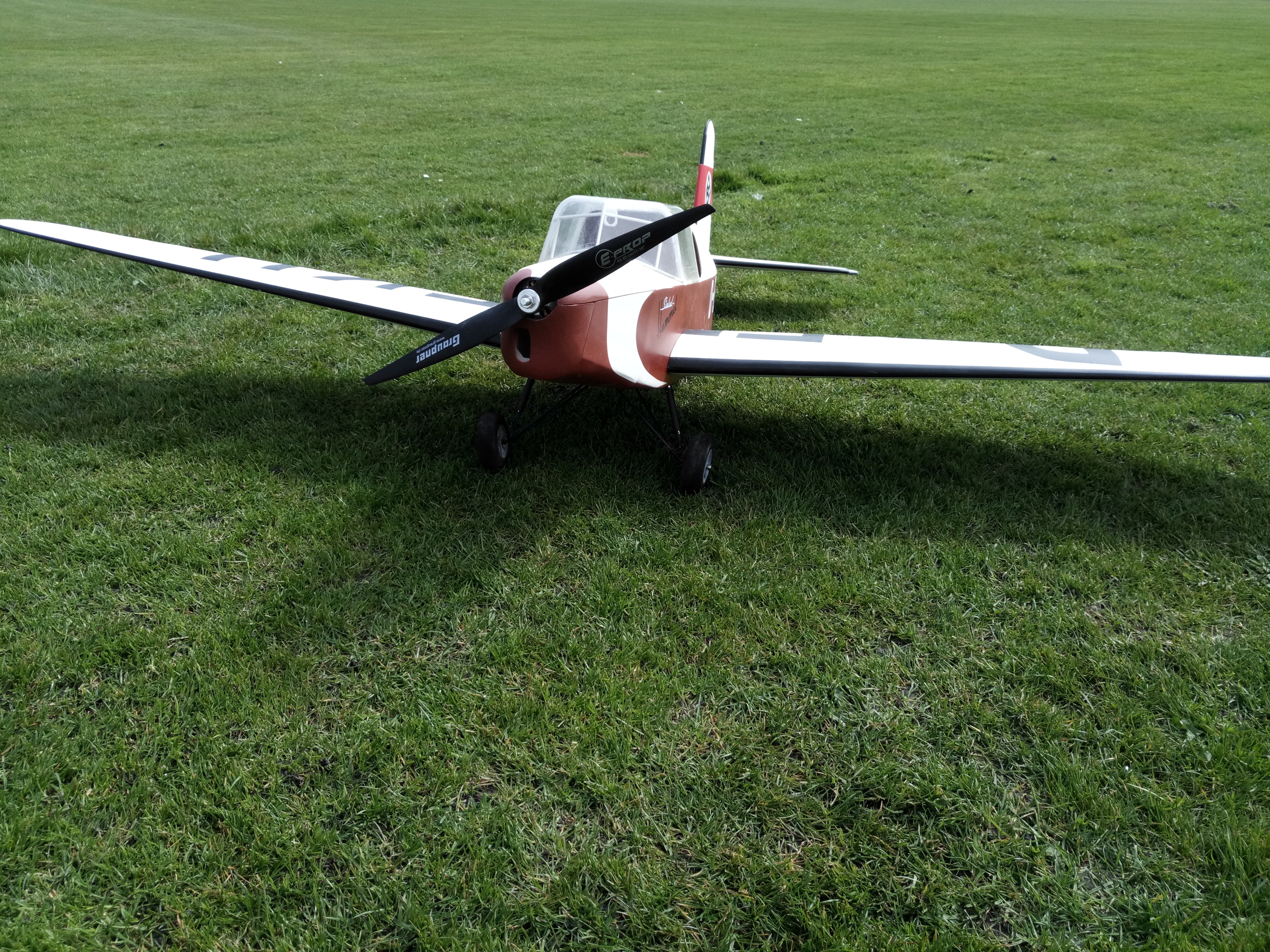

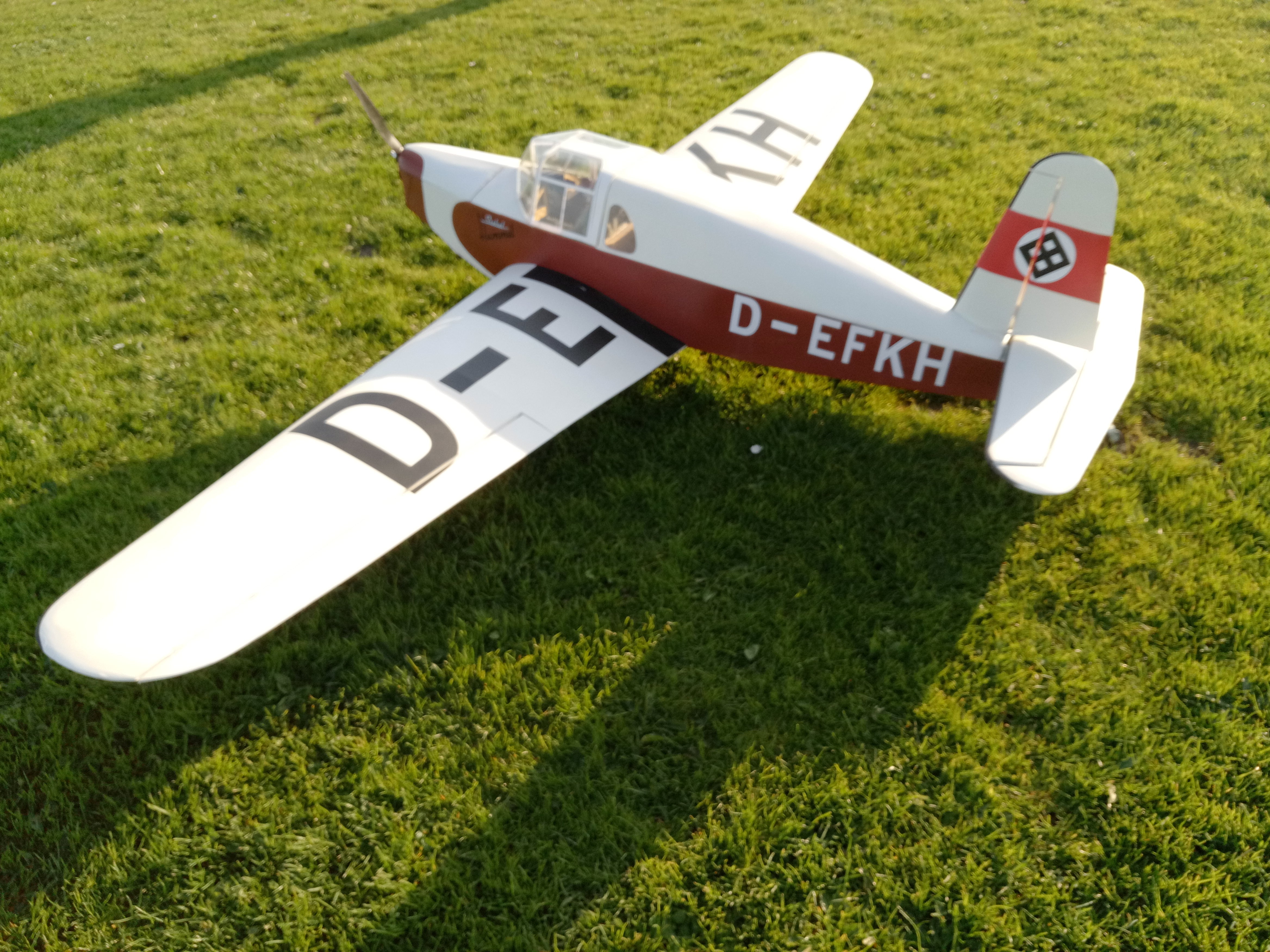

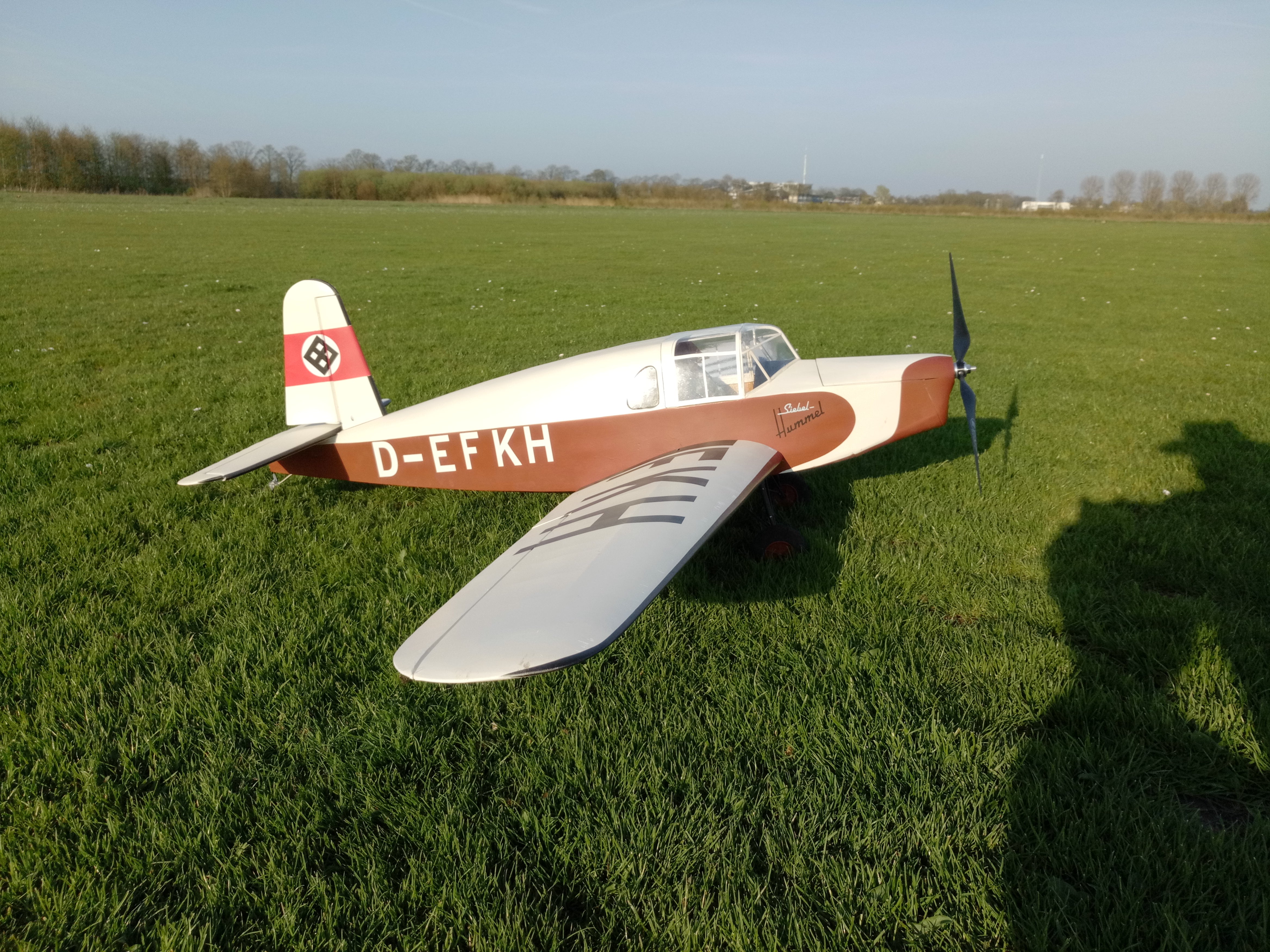

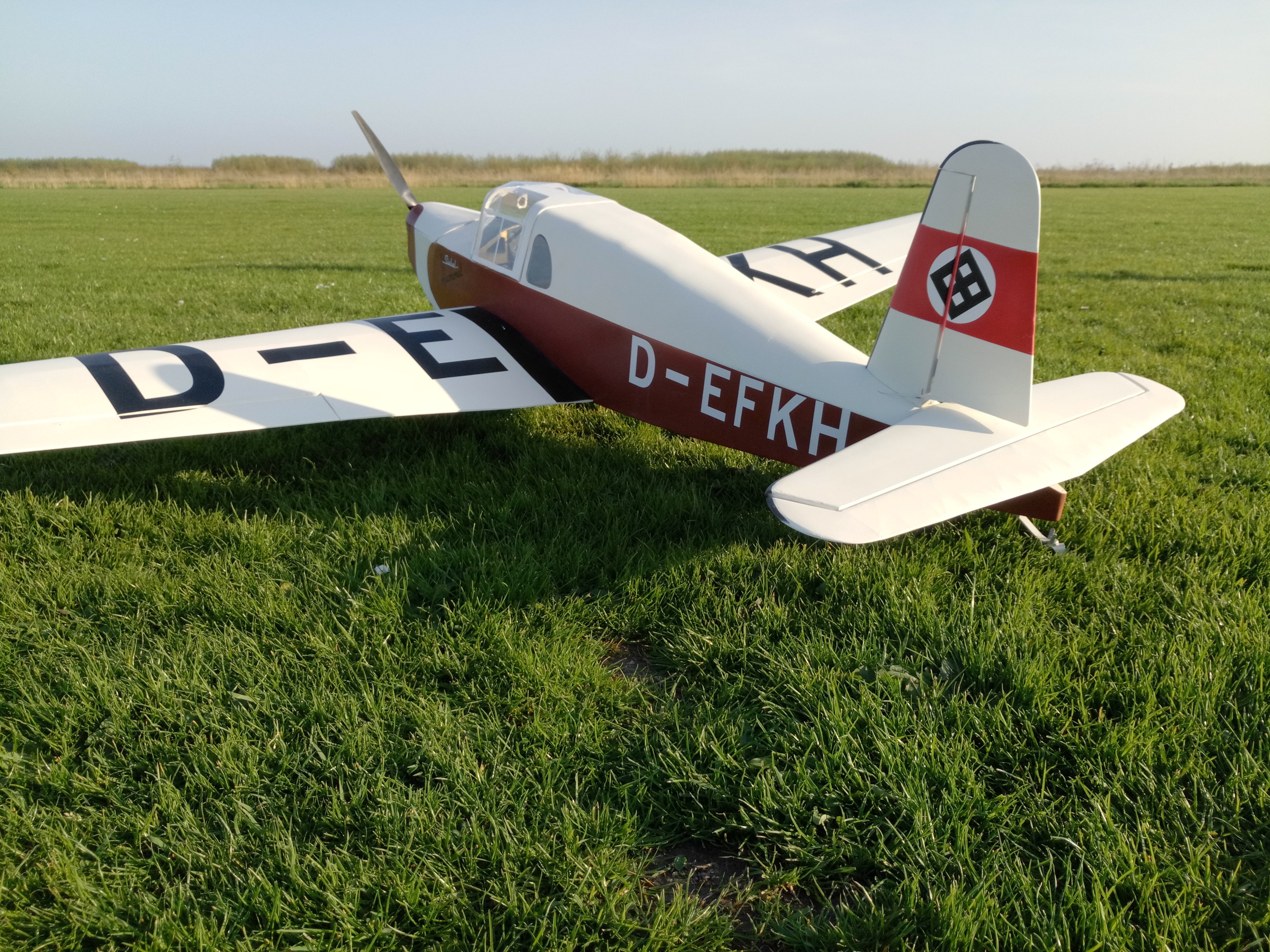

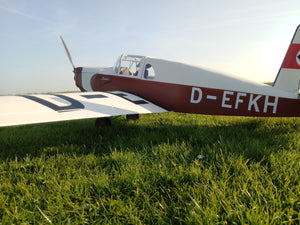

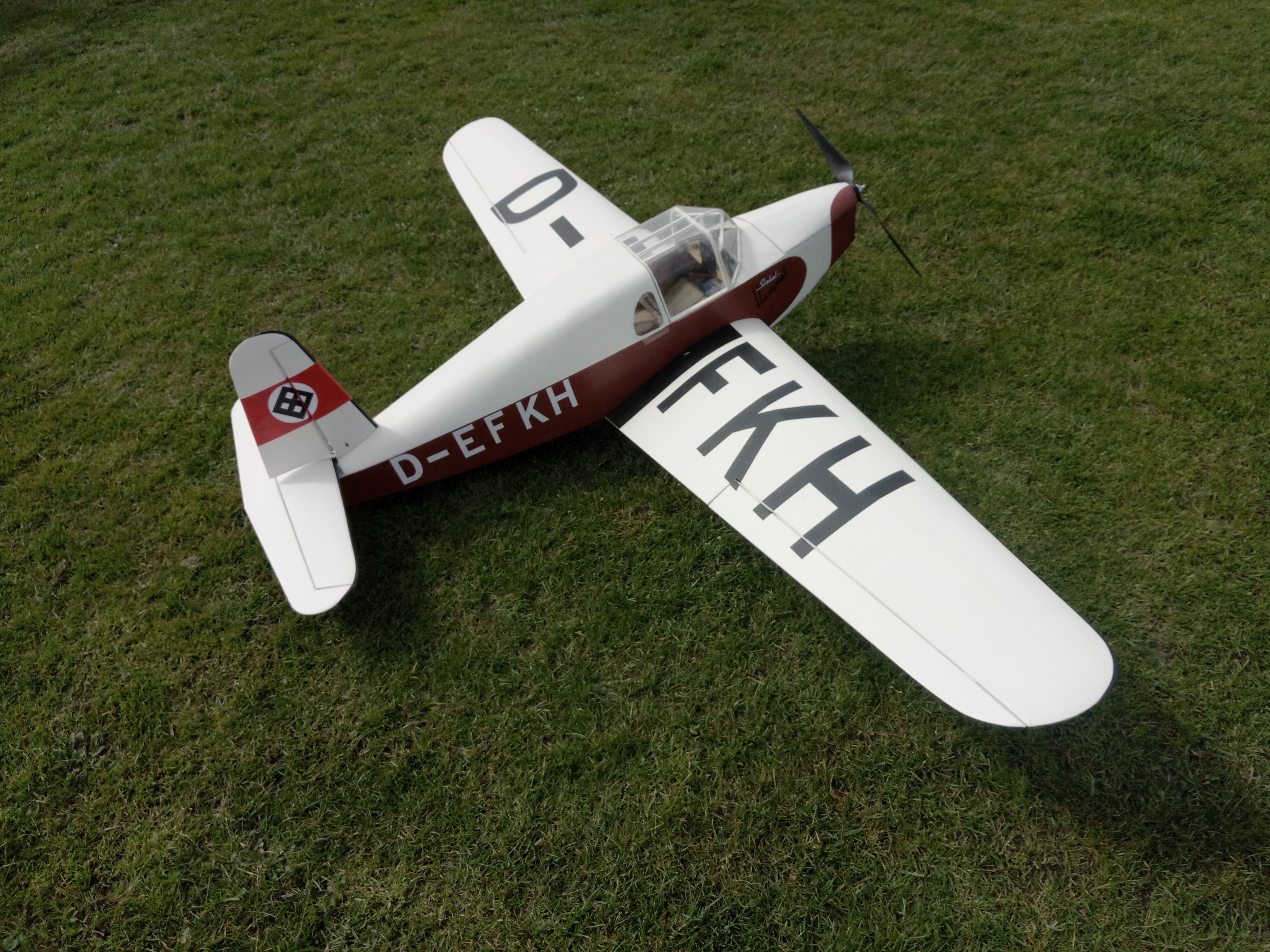

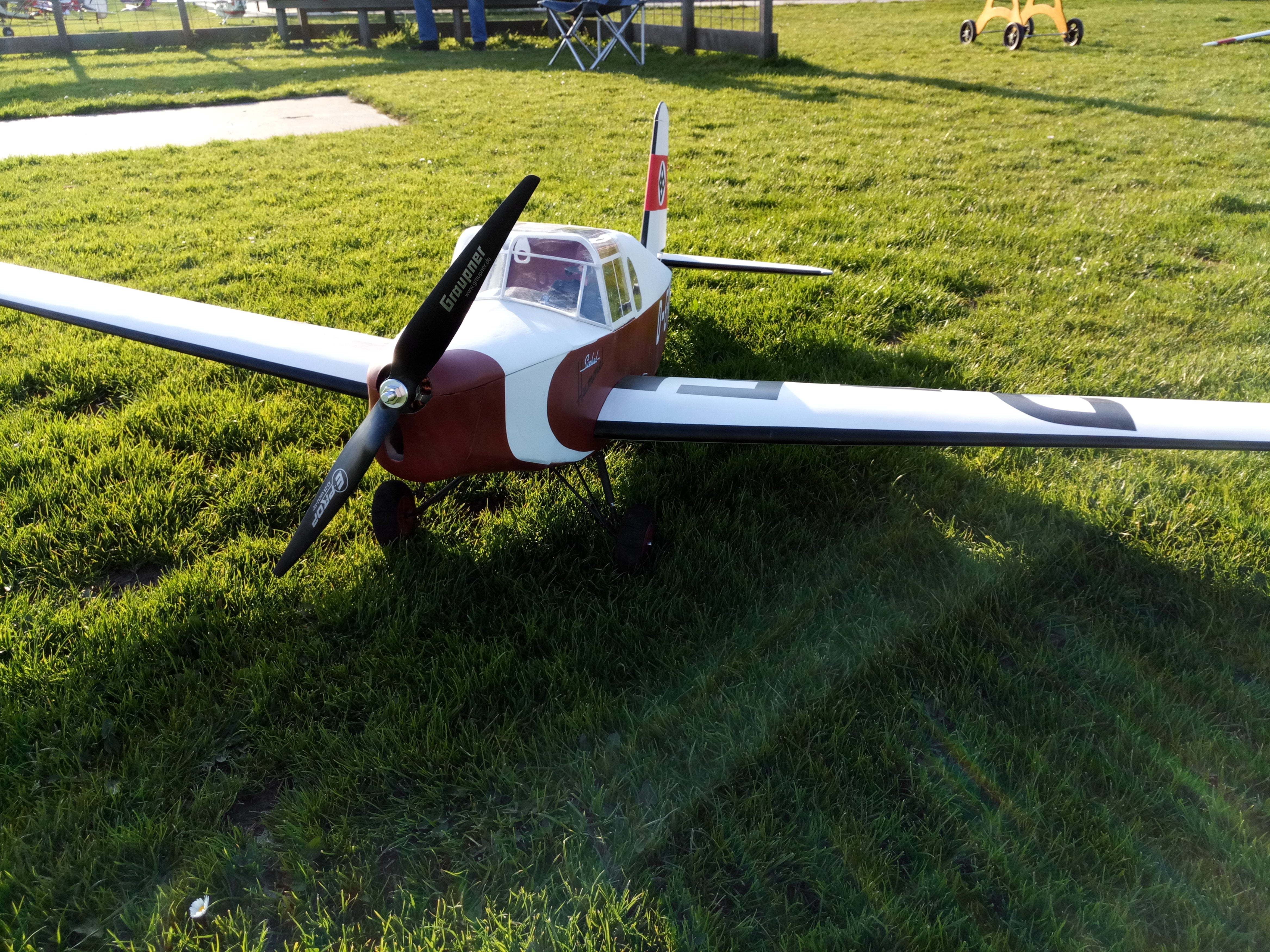

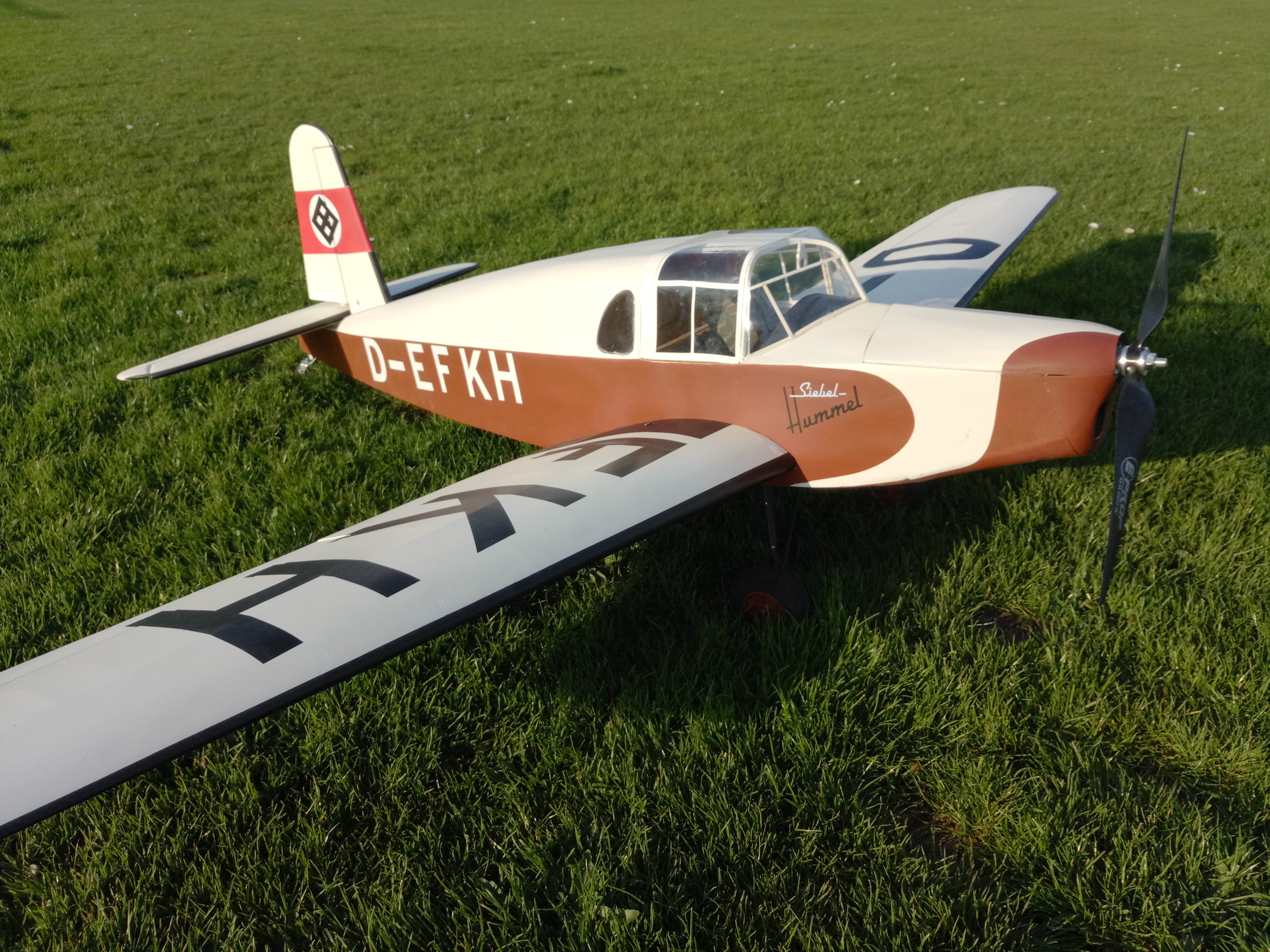

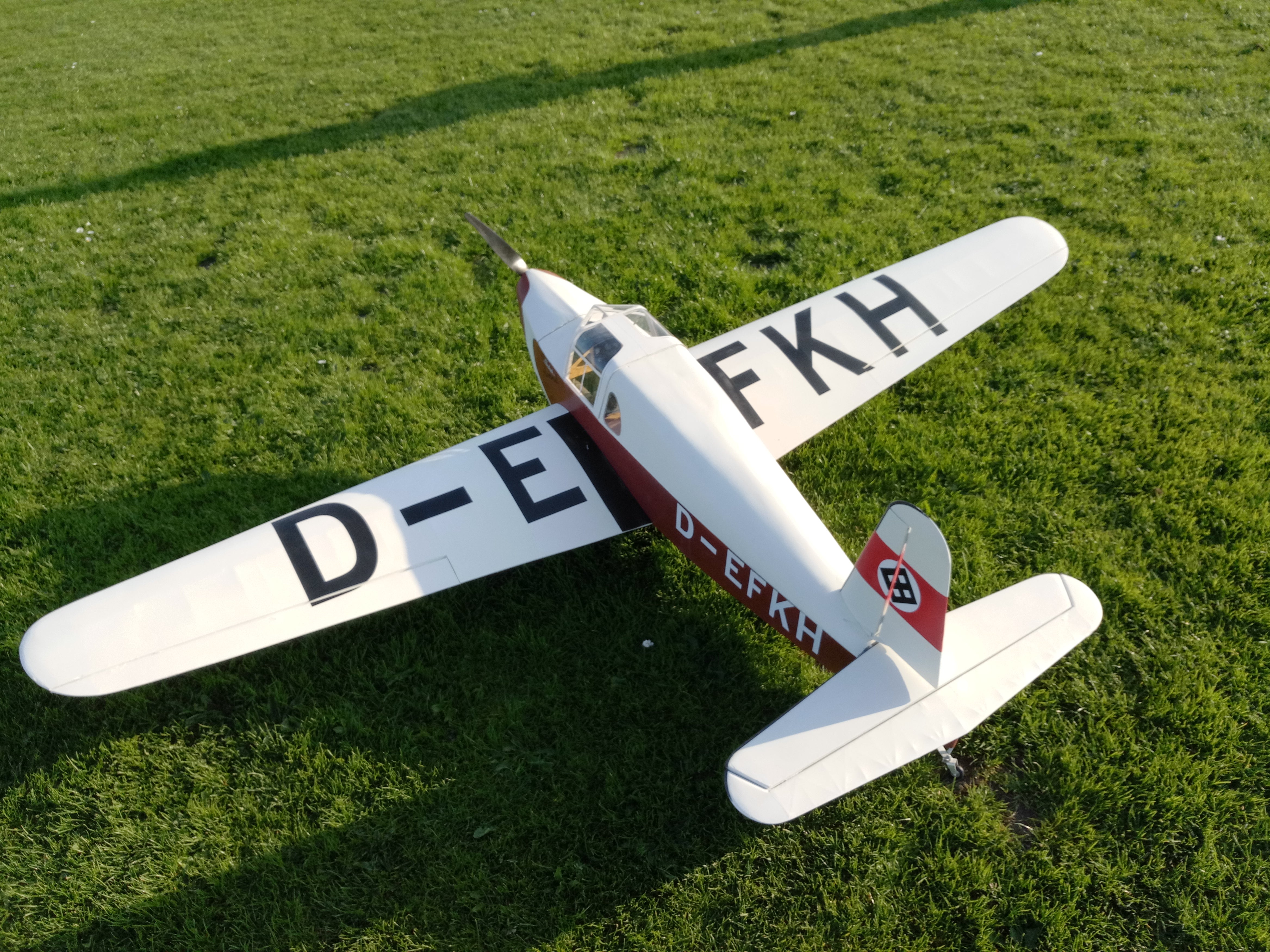

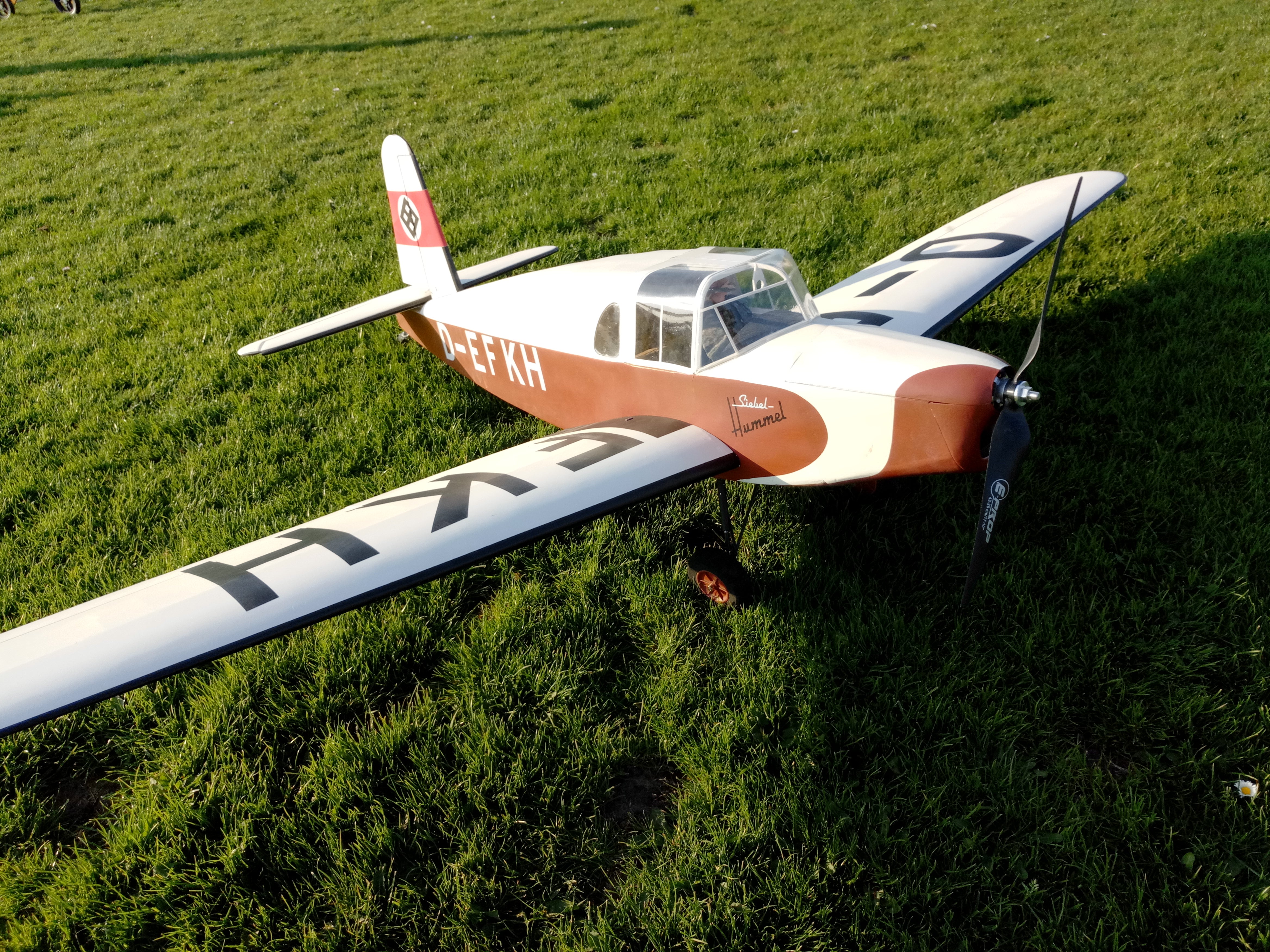

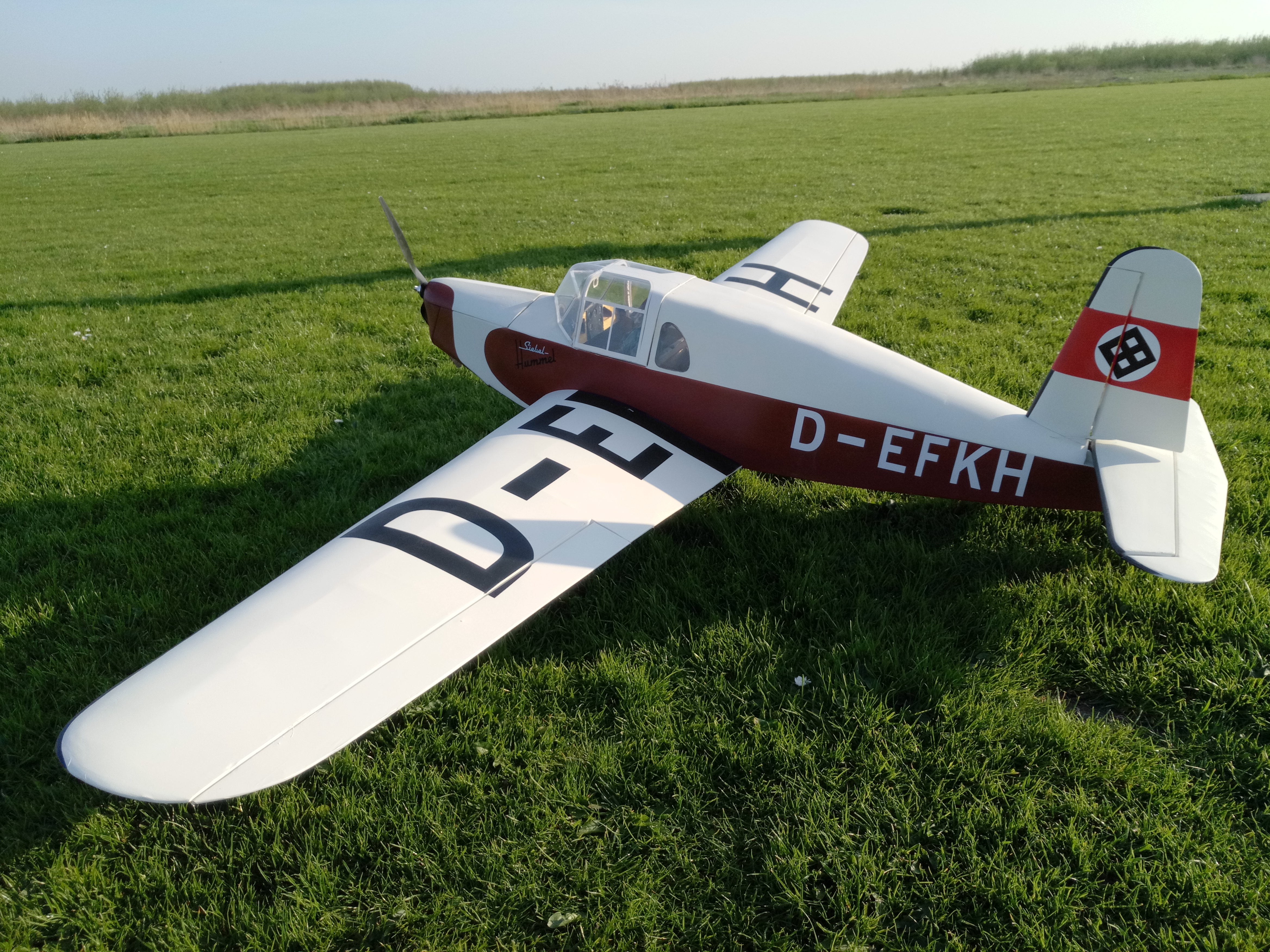

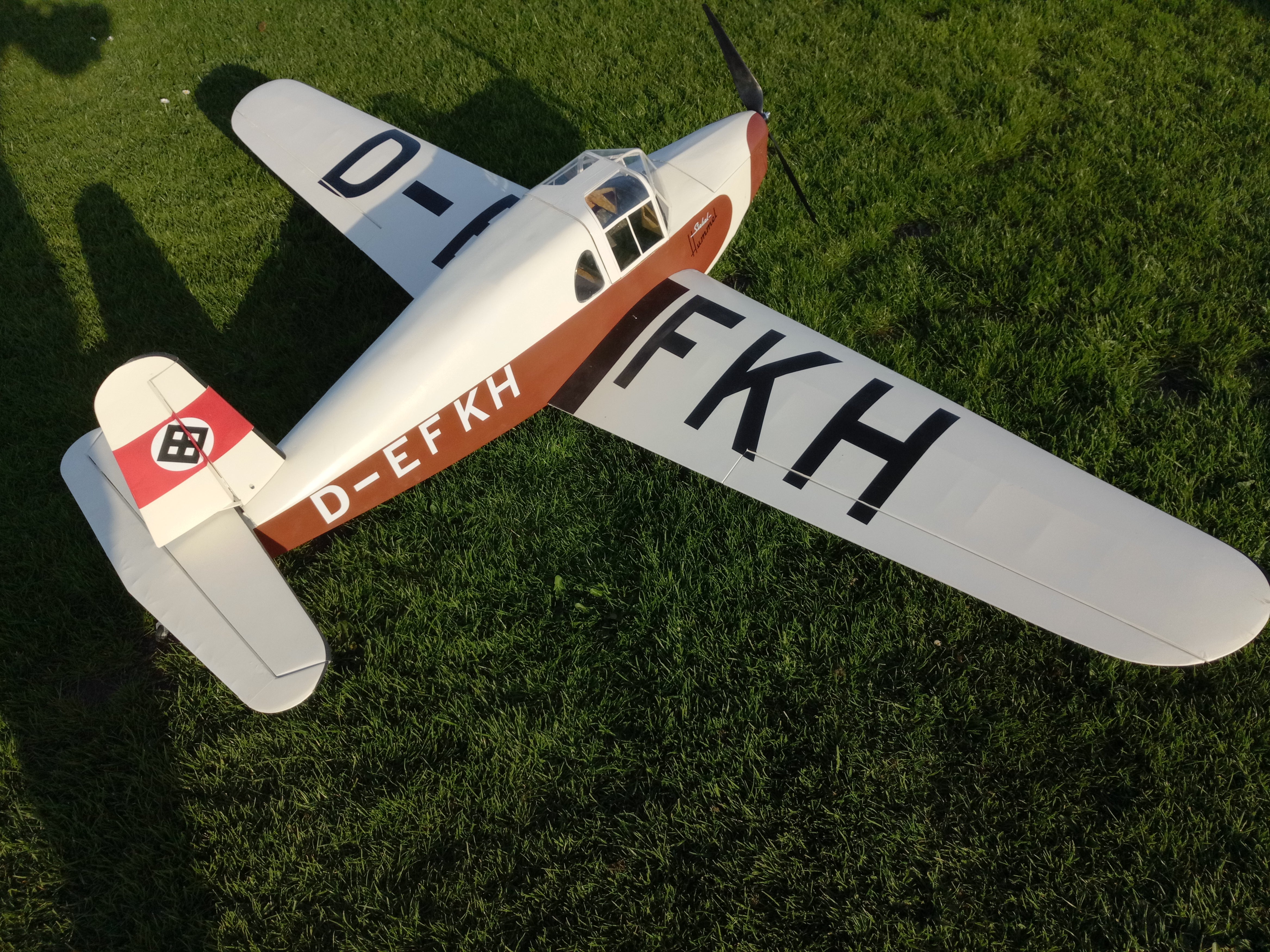

Beautiful model, scale flying at its best
