Saab J29 "Tunnan"

Regular price €229,00 Sale price €217,00

For 90mm edf and 6-8 cells 4500/5800

Design Features:
  • All Formers And Ribs 160 cnccut parts in balsa and ply
  • Unique Tab Lock Design
  • Removable wing for easy transportation and Storage
  • Wing Area: 45,4 dm2
  • Wing Span; 1420 mm
  • Length: 1350mm
  • Flight Weight: Starts at 4400 grams
  • 6 Channel, Ailerons, elevator, Throttle, Retracts, flaps, nosewheel steering
Kit Includes:
  • Photos and Instructions Download here
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy, nose cone, wing tips
  • PVC/Paper Outlet and inlet Tube
  • All wood and sheeting to make the J29
  • There is no hardware in the J29
Required to Complete:
  • Any 7 Channel Radio
  • Light weight Receiver:
  • Servos: About 13 grams metal gear 6pcs
  • Motor: Hetrc EDF650/1500 8s or 650-58-1970 6s series
  • Wemotec Midi fan Evo 90mm
  • Battery: 8S lipo 5000ma/6s5800
  • Thick and Thin CA glue, 3/3

Small parts not in kit:
Canopy closing
M5 nut 2x
M5x50 nylon 2x
Hinges ca type 8x
Flap hinges 4x
hatch hinges 8x
Kwiklinks 2x
Horns 5x
Steel wire 1,5mmx500 aileron,flap,elevator steering
Steel wire 0,8mmx250 front retract steering
2,9x13 sheet screw fastener 16x retracts and edf unit
Thin aluminium sheet for gear doors or use cut out wood from fuselage
Retract legs , steel 4mm mm bend yourself for grass recomended, or use commercial units
Wheels Main 90-100mm Front 50mm

Retracts used:
Servoless Retract with Metal Trunion 44mm x 41mm Mount (2pcs)
Servoless Steerable Nose Retract with Metal Trunion 44mm x 41mm Mount
Glass finish : 2mtr 25 gr glass and we used PS100 polyurethane or use filler dope

Now some building pictures:

Wing classic build wood ribs and formers sheeted

airframe build up step by step

Vacuumformed parts making life a bit easier

Retracts working almost as the real one

Batteries and receiver easy accessible through canopy.

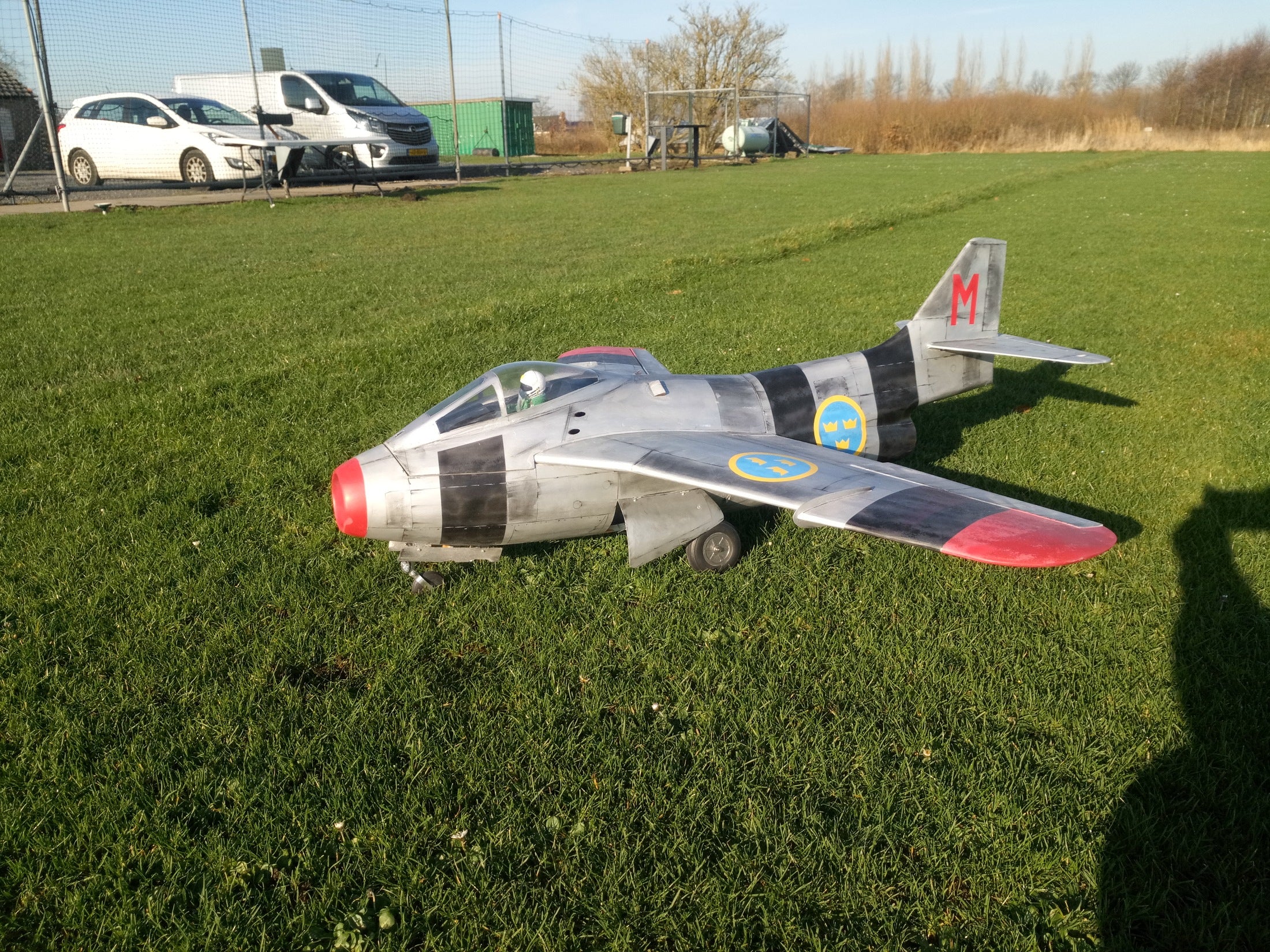

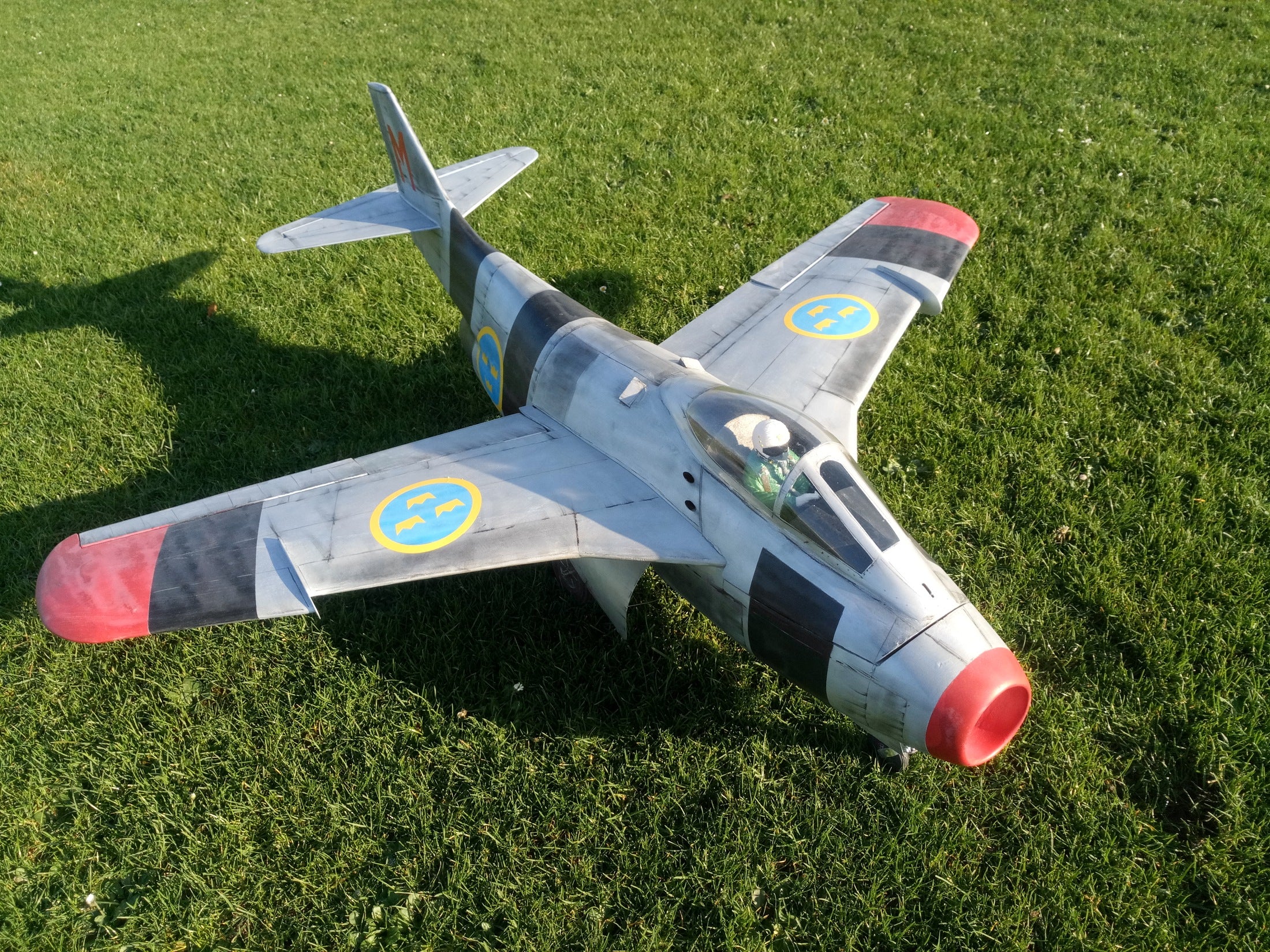

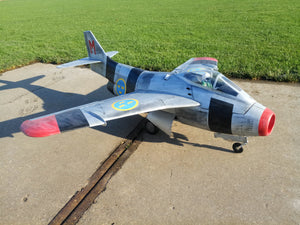

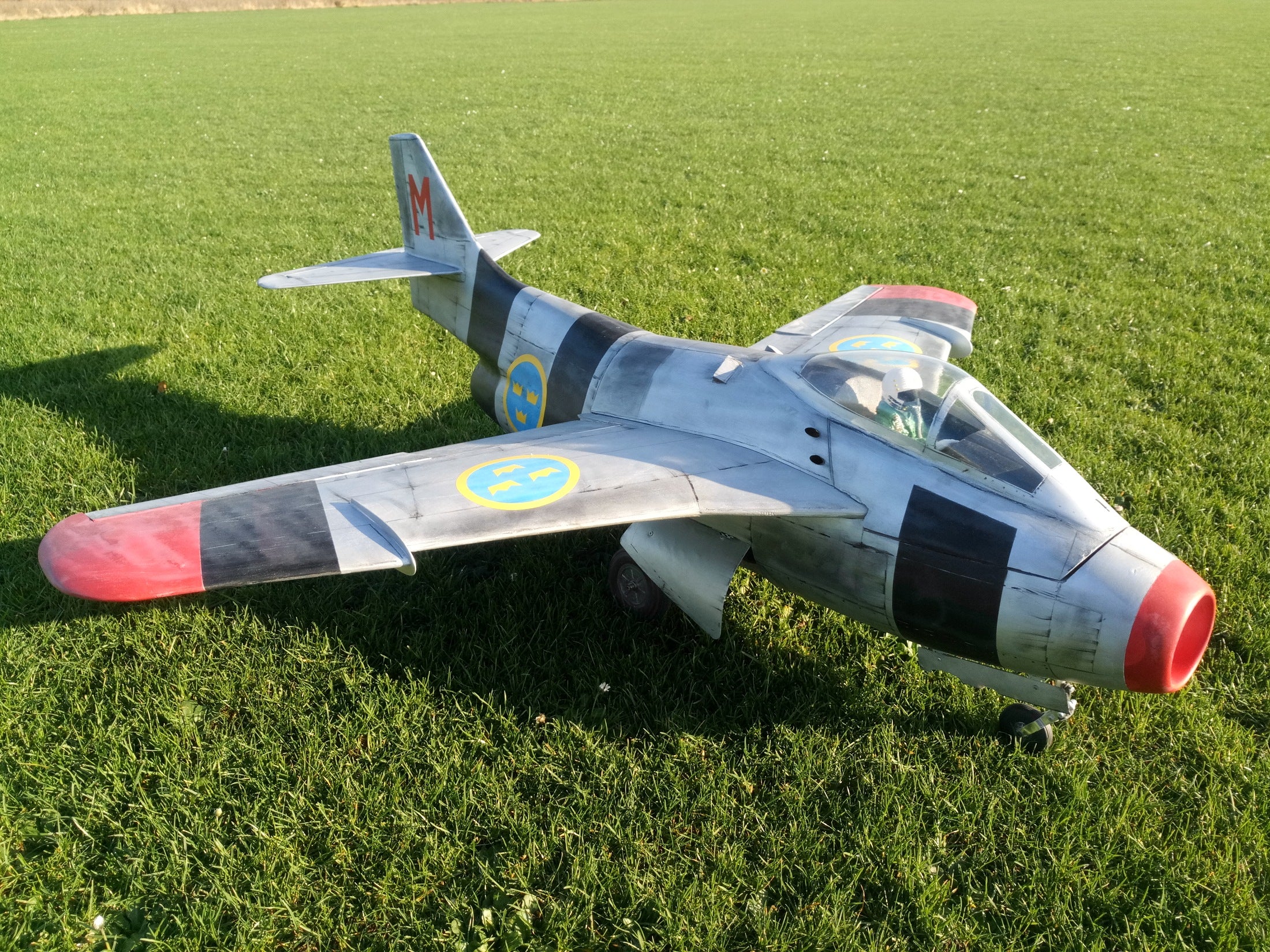

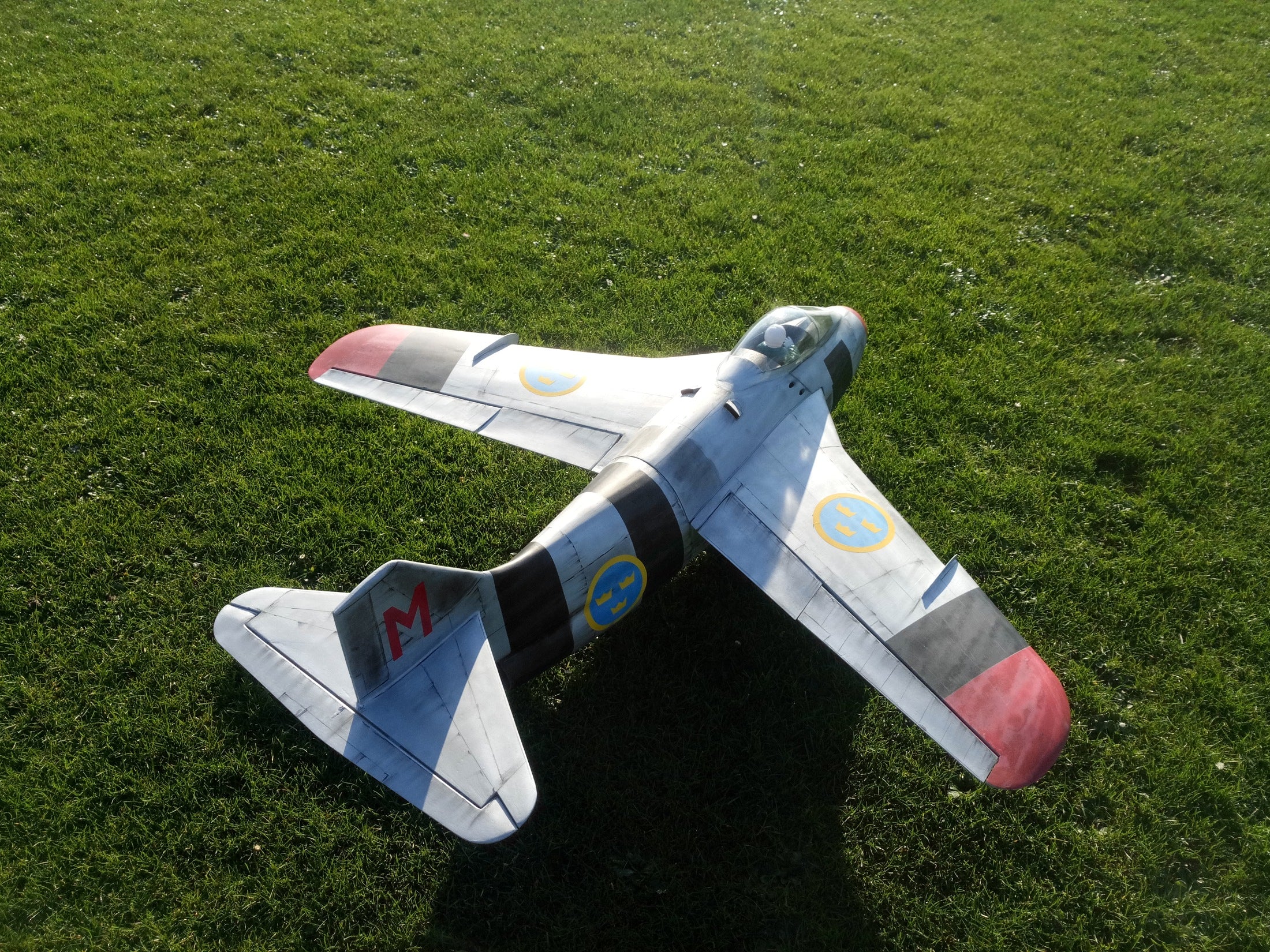

Fly the beast.
