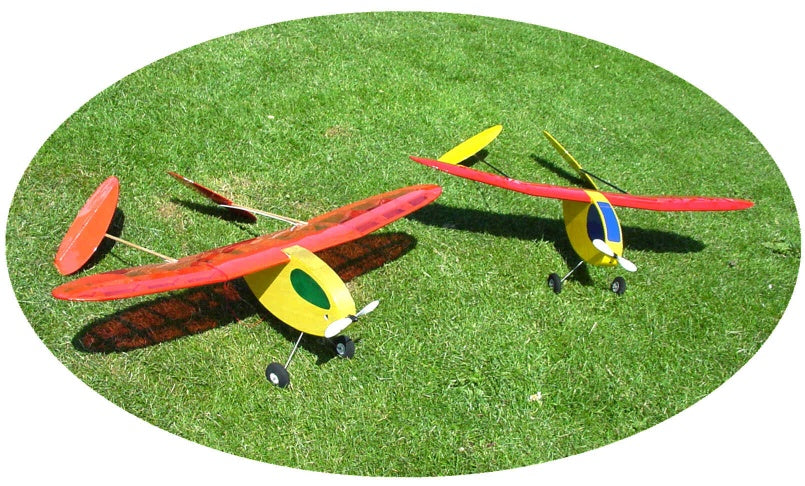

Paddle
Regular price
$50.00
again in production as it is such a nice bird.
for small battery and controls.
Design Features:
- All Formers And Ribs CNC Cut
- Unique Tab Lock Design
- One Piece Design
- Easy Battery Access through Hatch
Specifications:
- Wing Area: 14 dm2
- Wing Span; 880 mm
- Flight Weight: Starts at 350 grams
- Wing Loading: 19gr dm2 to 22gr dm2
- 3 Channel Tailerons & Throttle
Kit Includes:
- Simple instructions on drawing
- Full Size Rolled Cad Plans With All Parts Shown
- All balsa To Complete The Paddle
- Control Horns , Steering Cables
- Pre bent landing gear
Required to Complete:
- 3 Channel Radio
- Light weight Receiver:
- Light weight Servos: 3x 9 grams
- Motor: 2208-12 or T6-15
- Electric Speed Controller 20 amps
- Prop 6x5,5 apc thin or 5,2x5,2
- Battery:3 lipo cells 1100 ma
- Thick and Thin CA glue
- Light weight wheels 45-50mm 2x
Float set:
woodset cnc cut
- for airplanes up to 500gr
- Here shown on the Paddle, Easy balsa build and very light, included with Drawing
- and some 2mm steel wire for the back gear
- Length : 420mm
- Width : 55mm
woodset cnc cut
