The Offshore/RBCkits P80 for mini fan 480
An exciting model for the jet fans. Redesigned by RBCkits for build up wing.
This is a hardcore builders kit, but very rewarding to complete.
Special thanks to Steve "Fuzz" St Martin for the video
Here is the forum build link.
Design Features:

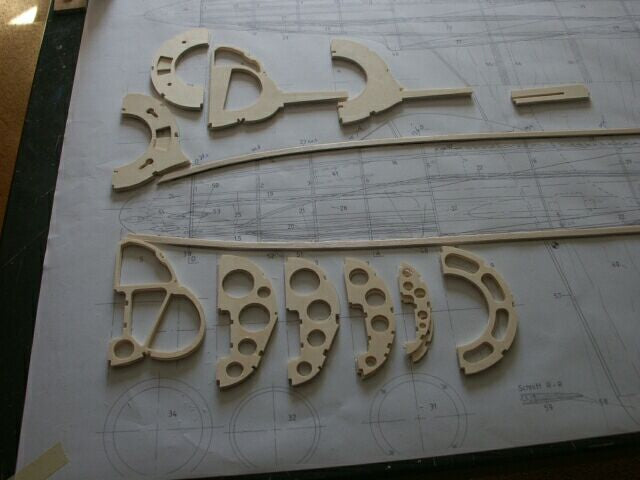

- All Formers And Ribs CNC Cut
- Classic Design
- One Piece Design
- Specifications:
- Wing Area: 14 dm2
- Wing Span; 1100 mm
- Flight Weight: Starts at 900 grams
- Wing Loading: 64gr dm2 to 75gr dm2
- 3 Channel Elevator, Ailerons & Throttle (ailerons mixed for slower landing speed)

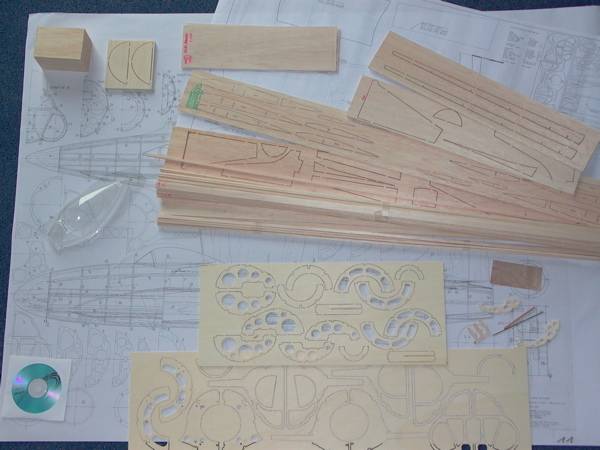

Kit Includes:
- Instructions in German
- Full Size Rolled Cad Plans With All Parts Shown
- Vacuformed Canopy ,
- Paper Intake Tube , Paper Outlet Tube
- No Control Horns , Steering Cables fasteners
Required to Complete:
- Any inexpensive 3 Channel Radio
- Light weight Receiver:
- Light weight Servos: About 9 grams
- Motor: Hetrc edf 2W
- Electric Speed Controller
- Wemotec Mini Fan 480
- Battery: 3S3700
- Thick and Thin CA glue
- Bungee Launch req.
- The P80 needs a 8mmx7,5mtr bungee with 8kg of pulling power.
- There are no tiptanks in the p80 kit, no hardware
