P-59 Airacomet

Regular price €233,00 Sale price €223,00

For 90mm Midi fan Evo edf and 8 cells 5000 (a FMS unit or equ will not work in rbckits edf jets). The P-59 is very easy to fly.



Design Features:

  • All Formers And Ribs 192 cnccut parts in balsa and ply
  • Unique Tab Lock Design
  • Removable wings for easy transportation and Storage

Specifications:

  • Wing Area: 44 dm2
  • Wing Span; 1570 mm
  • Length :1300mm
  • Flight Weight: Starts at 4100 grams
  • 6 Channel, Ailerons, elevator,Throttle, Retracts, flaps, nosewheel steering

Kit Includes:

  • Photos and Instructions on CD
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy,nosecone, Exhaust ducting,Paper inlet ducting
  • All wood and sheeting to make the P59
  • There is no hardware in the P59

Required to Complete:

  • Any 7 Channel Radio
  • Light weight Receiver
  • Servos: About 13 grams metal gear ailerons needs stronger type 30gr
  • Motor: Hetrc EDF650/58/1480 8s
  • Wemotec Midi fan Evo 90mm
  • Battery: 8S lipo 5000ma note for size
  • Thick and Thin CA glue, 3/3


Small parts such as screws etc are not in the kit; a list of parts is included


Now some building pictures:

Wing classic build wood ribs and formers sheeted

Stick on wings with dowels, very strong

Build up stabilizers

Exhaust duct vacuumformed builds into fuselage

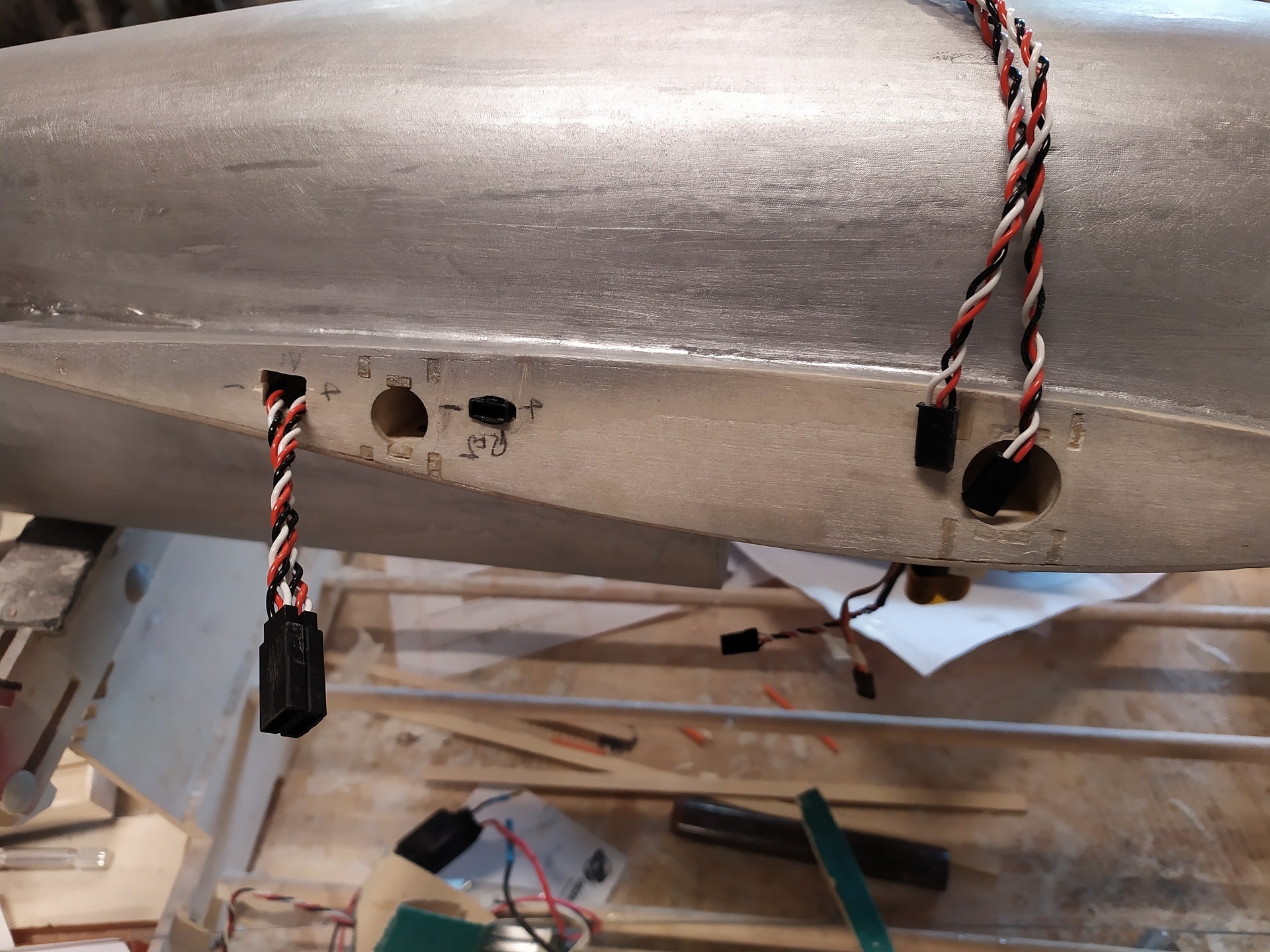

All strip sheeting fuselage, a nice job

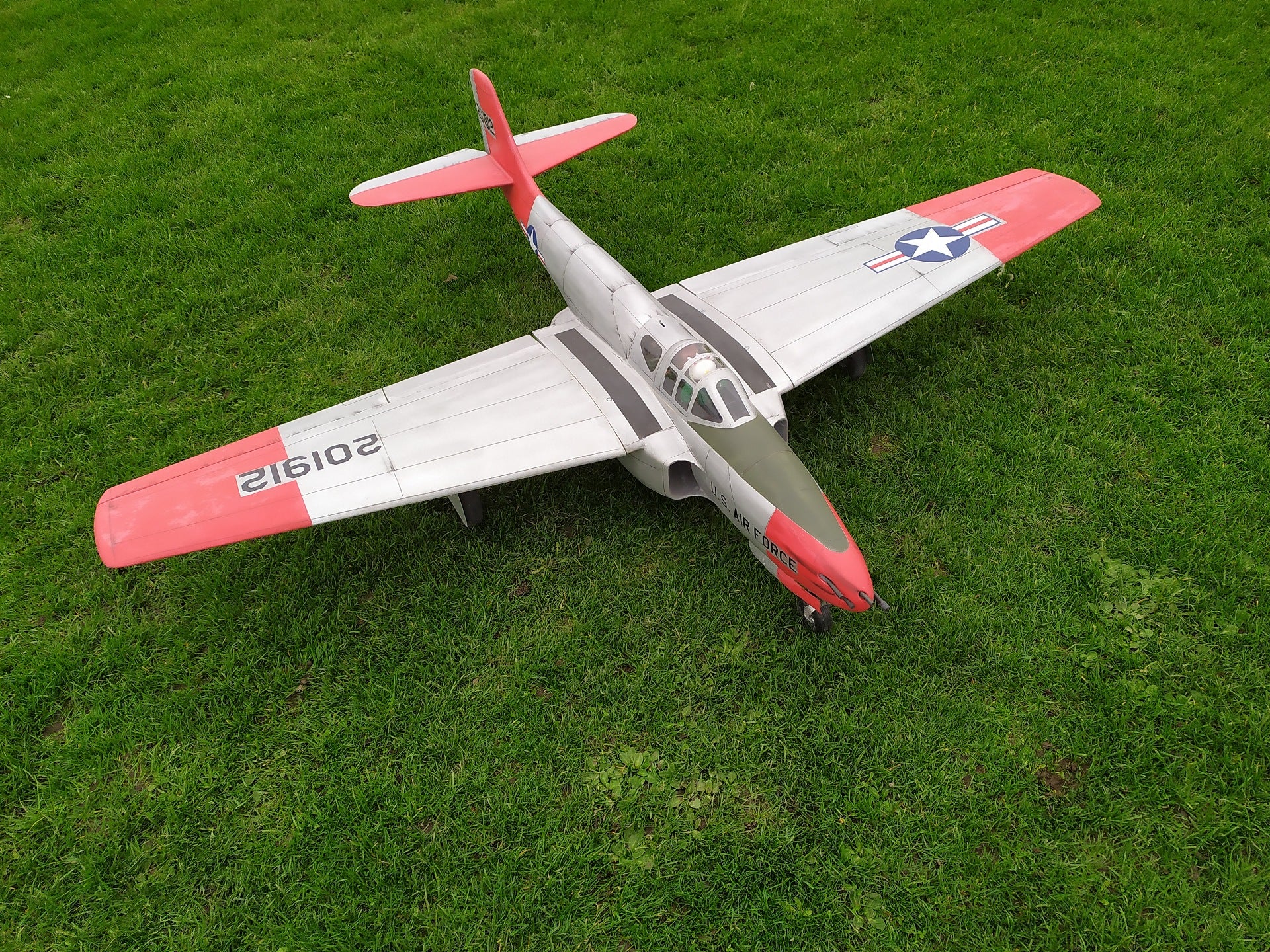

Nice job when finished

Battery space tight fit you can slide battery in nose also.

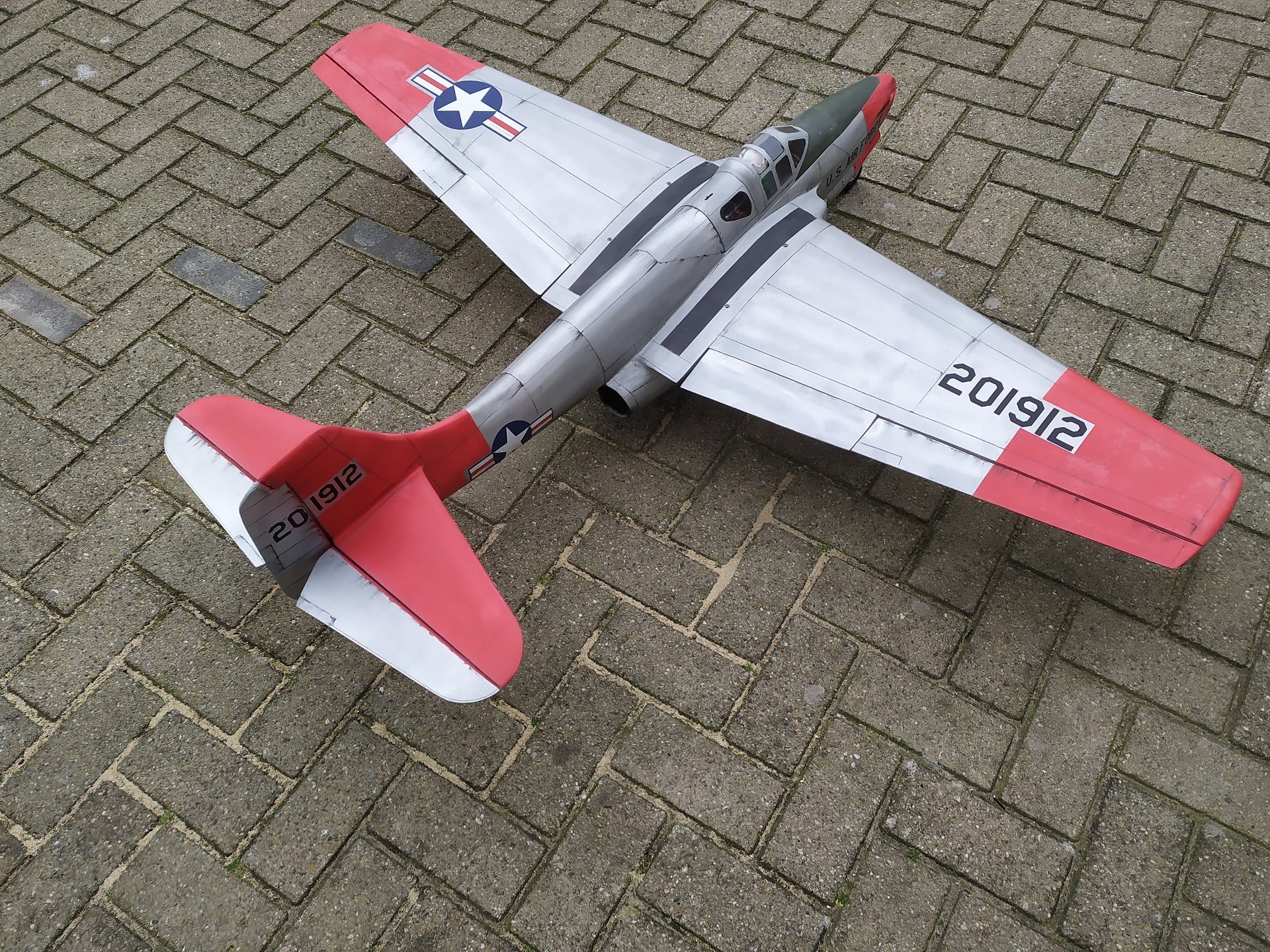

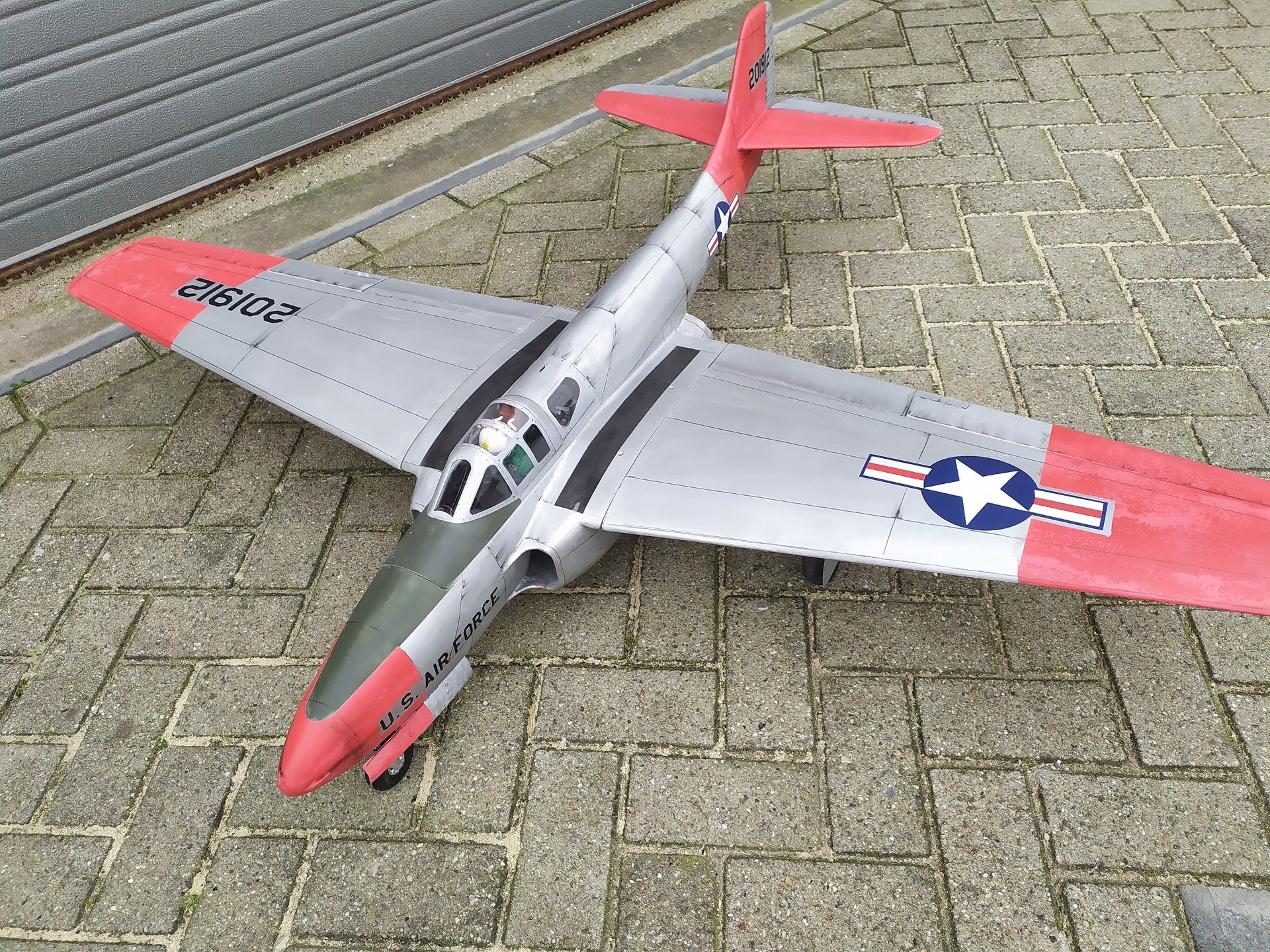

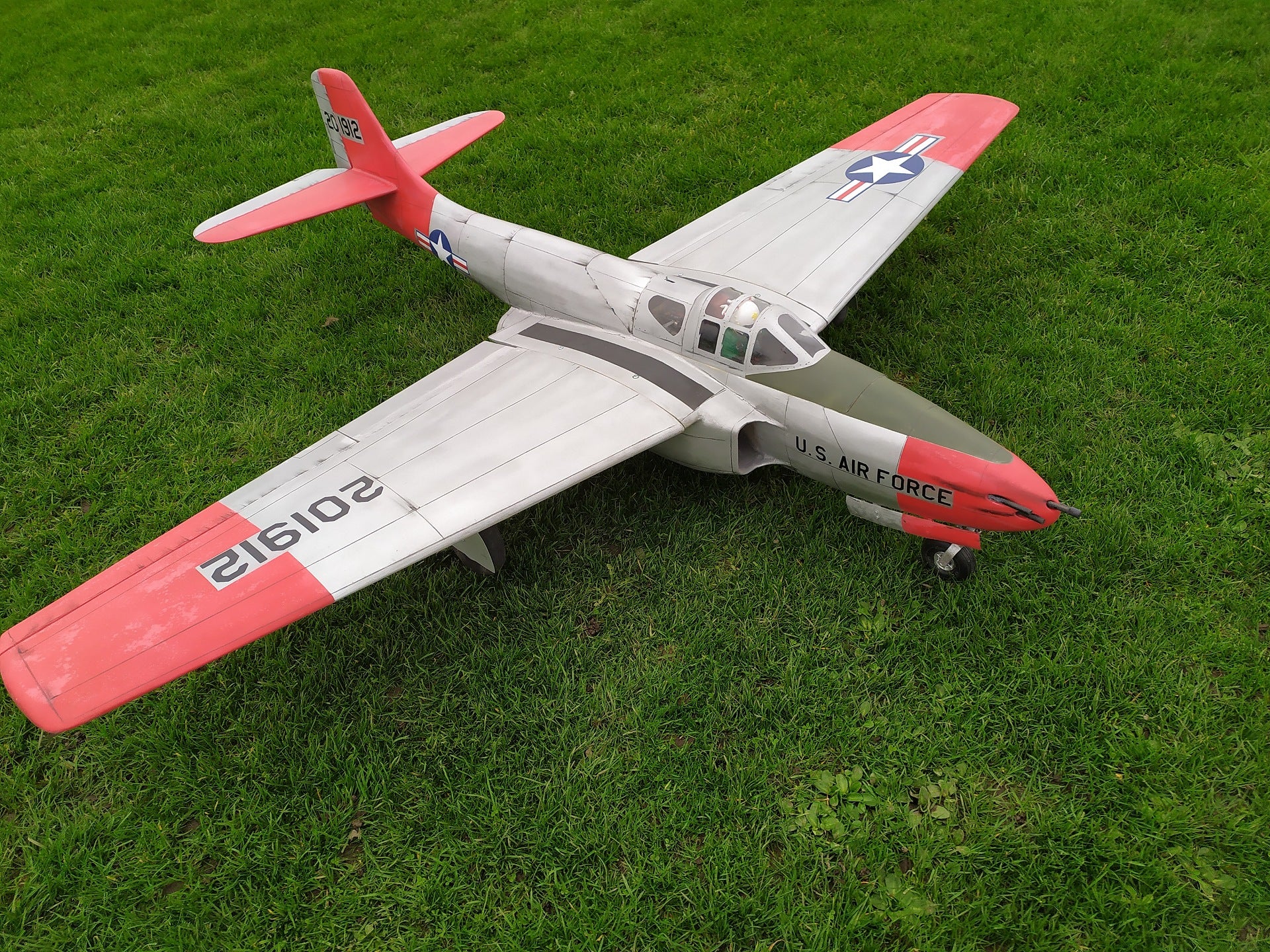

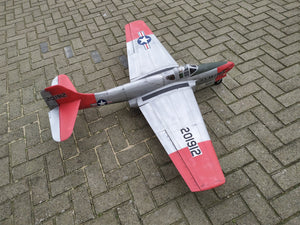

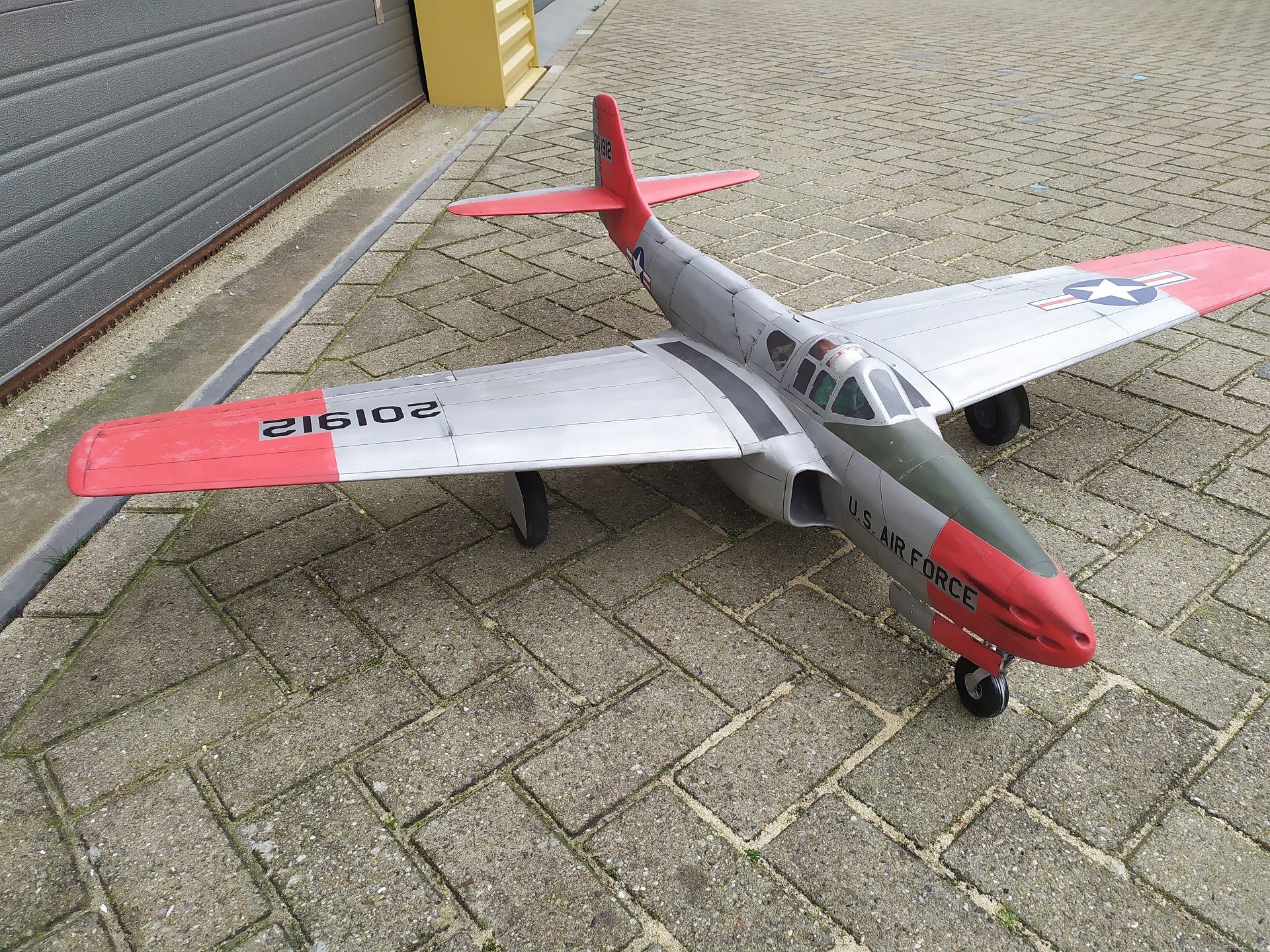

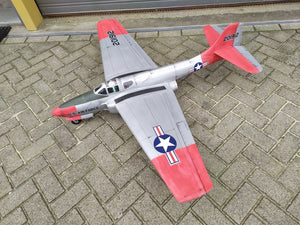

Finished, retracts are explained on drawing and there are a lot of pictures on the CD including building instructions.
