Mig29

Regular price €99,00

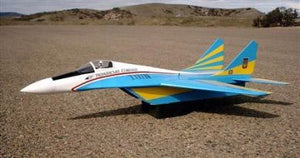

Mig29 "Fulcrum"
  • For mini fan 480 and 3-4S Lipo 3200
  • Power req :Hetrc edf 2w or 2w-20 or 3W
  • Controls: 2x servo
  • Including: cad drawing, canopy ,cd with pictures

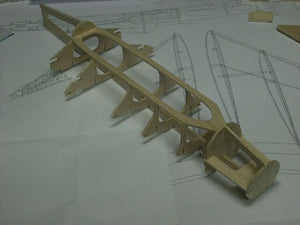

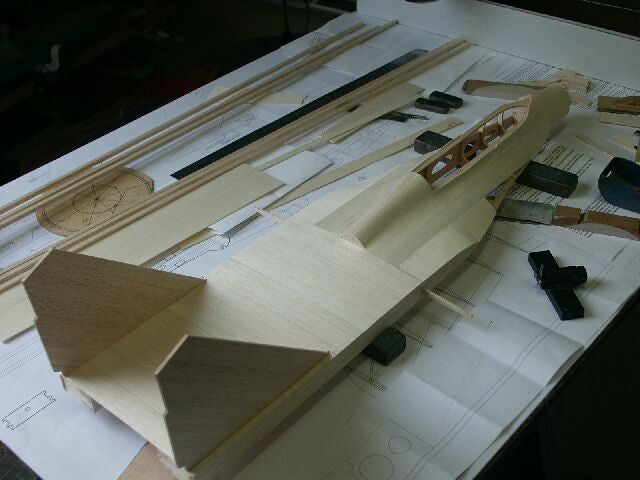

  • Photo instructions
  • Wood build precision kit


Picture "Copyright (C) 2002, 2012 Dan Savage - All Rights Reserved"

Design Features:
  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • One Piece Design
  • Unique Motor/Fan compartment closing
  • Easy Battery Acces through Canopy
Specifications:
  • Wing Area: 13 dm2
  • Wing Span; 650 mm
  • Flight Weight: Starts at 1100 grams
  • Wing Loading: 64gr dm2 to 75gr dm2
  • 4 Channel Elevator, Ailerons & Throttle (ailevons needs delta mixer)
Kit Includes:
  • Photo Instructions

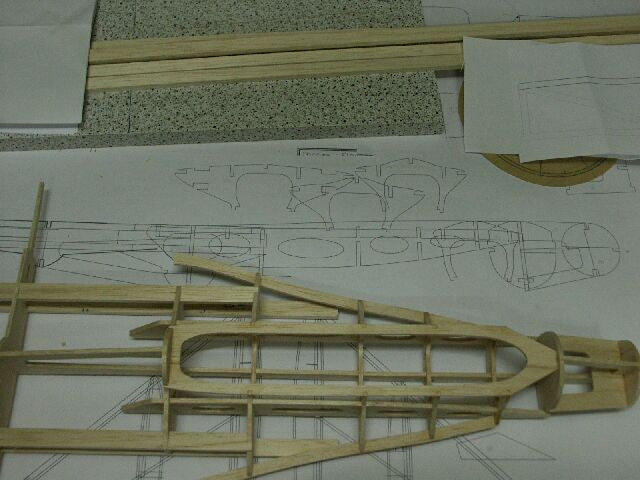

  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy , Nose Cone
  • PVC Outlet Tube
  • Control Horns, Steering Cables
Required to Complete:
  • 3 Channel Radio with delta mixer
  • Light weight Receiver:
  • Light weight Servos: About 9 grams (2x)
  • Motor: Hetrc edf 2W (3 lipo) or 2W-20(4 lipo)
  • Speed controller 60-80 amps
  • Wemotec Mini Fan 480
  • Battery: 3S or 4S 3200 lipo
  • Thick and Thin CA glue
  • Bungee Launch req.
 The Mig 29 can be hand launched
