Jodel D9 "BeBe"

Regular price €169,90

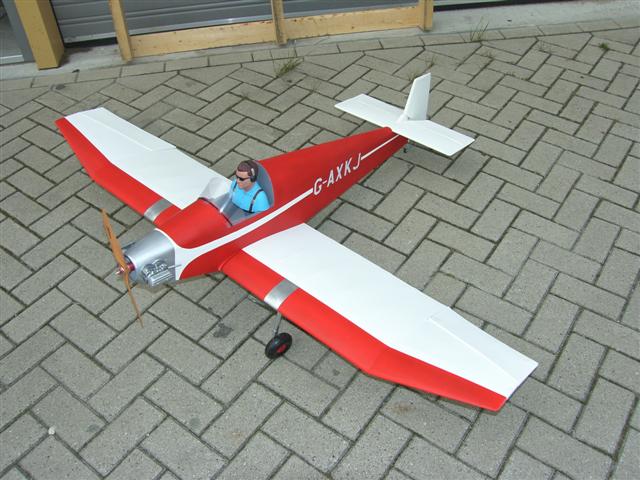

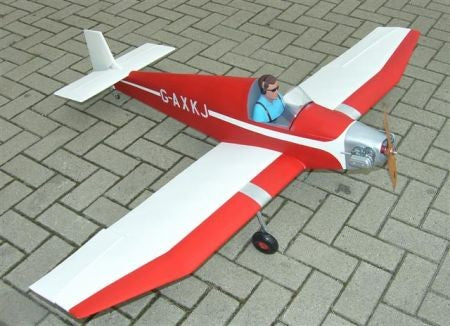

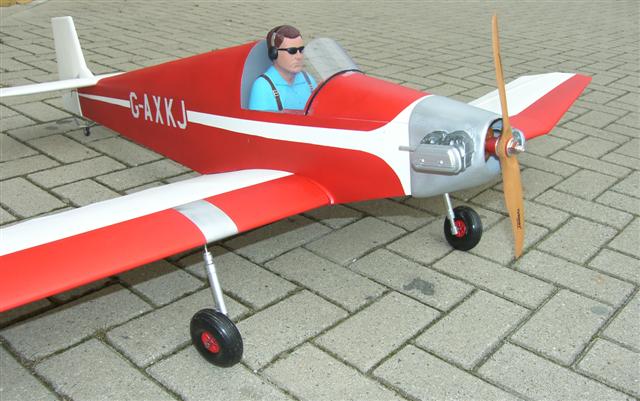

The Jodel "BeBe"
  • Scale model of the French homebuilt
  • All wood construction
  • Easy building kit all parts cnc cut
  • The Jodel is a great flyer with the 35 or 41 motor and 4 lipo cells
  • Scale 1:4
  • Great to fly slow and low
Short movie thanks to Panos
Design Features:
  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • Two Piece Design Easy transportation
  • Motor/Battery compartment Easy accesable
  • Battery Access Through Motor Hatch
Specifications:
  • Wing Area: 56 dm2
  • Wing Span; 1750 mm
  • Flight Weight: Starts at 2500 grams
  • Wing Loading: 44gr dm2
  • 4 Channel Controls
Kit Includes:
  • Photo Instructions on CD and Many more Pictures
  • Full Size Rolled Cad Plans With All Parts Shown
  • All wood parts included
  • Vacuformed Cowl and dummy VW motor
  • Pre Bend Landing Gear
  • Control Horns, Steering Cables, Hinges
  • Window
Required to Complete:
  • 4 Channel Radio.
  • Light weight Receiver:
  • Light weight Servos: About 13grams (2x ailerons ) to 30 grams (elevator and rudder)
  • Motor: type 35 or type 41
  • 35-50 amp controller
  • Some paint or plastic foil
  • Tail wheel set and main wheels 85mm
  • Battery: 4S 3200 to 5000 lipo
  • Thick and Thin CA glue
  • Grass or concrete airfield.
Some building pictures here.

Easy build wing all balsa
removable stabilizer and rudder
Easy build fuselage all locks together without glue
Balsa dream to build
Locking cowl for easy battery access
 Dummy VW motor included (pilot not)
Finish the Jodel in any way you like there are many examples to find.
