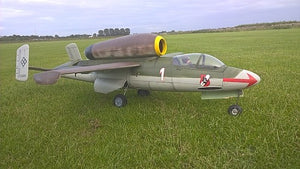

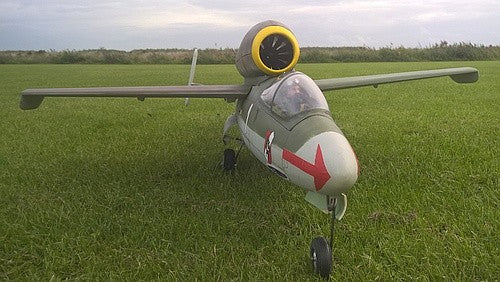

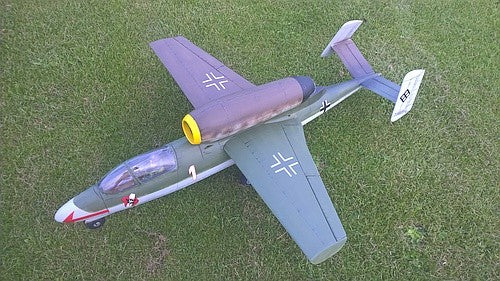

HE162 “Volksjager”

Design Features:

• All Formers And Ribs CNC Cut
• Unique Tab Lock Design
• 3D pdf on the cd with a lot of build pictures

Specifications:

• Wing Area: 30 dm2
• Wing Span: 1100 mm
• Total lenght: 1500mm
• Flight Weight: Starts at 3200 grams
• Wing Loading: 110gr dm2 to 175gr dm2
• 6 Channel , Ailerons ,Elevator,Flaps(you need them), Throttle,Retracts,Retract steering

Kit Includes:

• Photo Instructions on CD
• Full Size Rolled Cad Plans With All Parts Shown
• Vacuformed Canopy, fairings, nose cone, intake
• aly sheet for wheel doors etc  PVC  Outlet Tube
• All wood and stringers
• There is no hardware in this kit as most people have their own and want to use their own choice of materials and parts.

Required to Complete:

• Any inexpensive 6 Channel Radio
• Light weight Receiver:
• Light weight Servos: About 18 grams
• Motor: EDF power
• Matching Speed Controller
• Wemotec Midi fan evo or FMS, Mad thrust Or Turbine
• Battery:6S to 8S lipo
• Thick and Thin CA glue,uhu hart , white glue
• Retracts

List of parts you need  :   Instructions :

Some building pictures:

Bones of the HE162, on the cd are 3d pdf for viewing the parts

Fuselage is build on a included building Jig, very handy , strip planking lots of work

Wing  build easy. with flaps you need them for a safe start.

Motor housing , formers and strip planking like fuselage

All prepared for retracts , details are on the drawing

Flaps can also be build in , handy

Woodbuild WW2 jet

Motor pod with unique closing system

Fan builds in easy

Battery acces through removable canopy, battery tray included in kit also
