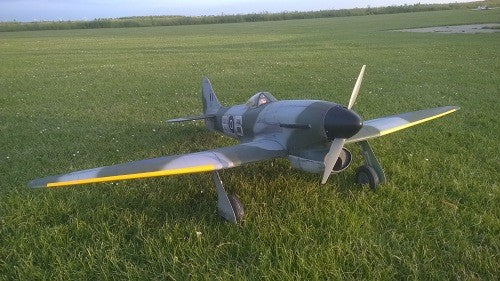

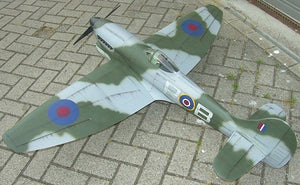

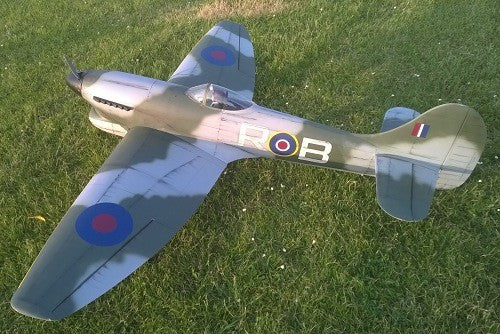

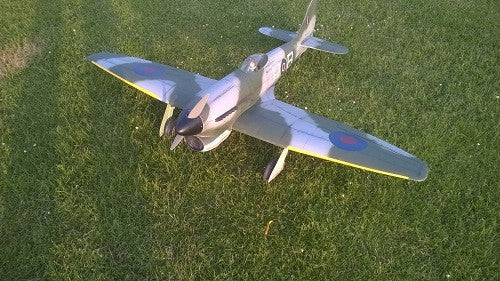

The Hawker Tempest V 1500mm
Designed By Luc Dievorst and R.Bulk
Design Features:
- All Formers And Ribs CNC Cut
- Unique Tab Lock Design
- Two Piece Design Easy transportation
- Motor/Battery compartment Easy accesable
- Battery Acces Through cowl opening
Specifications:
- Wing Area: 43 dm2
- Wing Span; 1500 mm
- Flight Weight: Starts at 2800 grams
- Wing Loading: 65gr dm2
- 4 Channel Controls
Kit Includes:
- download Instructions here
- Full Size Rolled Cad Plans With All Parts Shown
- Vacuformed motor cowl, Belly pan, exhaust,spinner,canopy
- Pre designed for retracts.
Required to Complete:
- 4 Channel Radio.Light weight Receiver:
- Electric retract set, or air, wheels 100mm
- Light weight Servos: About 13grams (4x ailerons elevator and rudder)
- Control Horns , Steering Cables,Hinges,small parts
- Motor: type G46-to G60 or NTM 41-48
- 35-75 amp controller
- Some paint, glass finish
- Battery: 4S 5000 to 6s5000 lipo
- Thick and Thin CA glue 5-6 bottles
- Grass or concrete airfield
- All info for retracts ,motor etc is on the drawing
Very large woodpack for the Tempest, sheeting stringers cnc cut parts
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/IMG-20160520-WA0001.jpg)
Vacuumformed parts for the Tempest , Belly pan, Fairings,motor cowl, spinner, canopy
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/SH105995.jpg)
Build up wing and tail feathers
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/SH105629.JPG)
Fuselage easy build on self jigging frame
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/SH105714.JPG)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/SH105724.JPG)
Made for retracts
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/SH105750.JPG)
Tailwheel steers also linking is inside fuselage
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/SH105771.JPG)
some strip planking neccesary
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/IMG-20160525-WA0001.jpg)
Easy Battery and Motor acces through cowl
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/IMG-20160527-WA0001.jpg)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/WP_20160608_002.jpg)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/tempest1500/WP_20160608_004.jpg)
