F7F Tigercat - Easy to build and easy to flyDesign Features:
- All Formers And Ribs CNC Cut
- Unique Tab Lock Design
- Two Piece Design
Specifications:
- Wing Area: 36 dm2
- Wing Span; 1330 mm
- Flight Weight: Starts at 1500 grams
- Wing Loading: 45gr dm2 to 65gr dm2
- 4 Channel, Ailerons, Elevator, Rudder & Throttle
Kit Includes:
- Photo Instructions download here
- Full Size Rolled Cad Plans With All Parts Shown
- Vacuformed Canopy , Cowlings,nacelles
- All balsa to complete the model
- There is no hardware in the kit
Required to Complete:
- Any inexpensive 3 or 4 Channel Radio
- Light weight Receiver:
- Light weight Servos: About 9 to 18grams 4pcs
- Motor: Hetrc 29/12/10 or equ
- RBC 40 amp Speed Controller 2x
- Props 10x6 and propdrivers
- Battery:3S3300
- Thick and Thin CA glue
- Steering cable 1x outher cable
- Steel 1,2mm 1x inner cable
- M3 self clinching nut 6x
- M3x6 6x
- M4 nylon 1x
- M4 selfclinching nut 1x
- Canopy closing 1x
- Horns 4x
- Hinges polyester
- 2x100 steel 1x elevator joiner
- Hand Launch req.
- The Tigercat can take retracts with some modifications
Here are some build pictures to get a better impression
Note that the Tiger is changed for ply construction
to make production easyer and take more power
Very easy build up fuselage![](https://www.rbckits.com/SH100773%20(Small).JPG)
![](https://www.rbckits.com/SH100824%20(Small).JPG)
Classic build up wing![](https://www.rbckits.com/SH100843%20(Small).JPG)
Vacuumformed nacelles glued to the wing![](https://www.rbckits.com/SH100884%20(Small).JPG)
Vacuumformed Turtleback![](https://www.rbckits.com/SH100897%20(Small).JPG)
Canopy is also the battery access ![](https://www.rbckits.com/SH100903%20(Small).JPG)

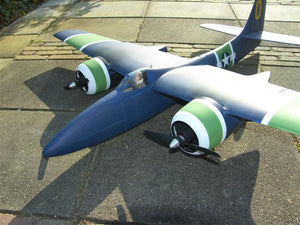

Finished and ready to fly (pictured in gallery)
