F4D-Skyray

Regular price €189,00 Sale price €169,00

Douglas F4D-Skyray 90mm edf

Design Features:
  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • One Piece Design
  • Specifications:
  • Wing Area: 48 dm2
  • Wing Span; 976 mm
  • Lenght :1350mm
  • Flight Weight: Starts at 2900 grams
  • Wing Loading: 54gr dm2 to 75gr dm2
  • 4 Channel, Ailevons, Throttle, retracts
Kit Includes:
  • Photo Instructions on CD
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy, fairings, nose cone
  • Paper Intake Tube, PVC/Paper Outlet Tube
  • Control Horns, Steering Cables
Required to Complete:
  • Any inexpensive 4 Channel Radio
  • Light weight Receiver:
  • Servos: About 25 grams metal gear
  • Motor: Hetrc EDF600 serie
  • RBC 70 amp Speed Controller
  • Wemotec Midi fan or schuberle DS51
  • Battery:6S to 8S lipo
  • Thick and Thin CA glue,hinges, small screws
  • Bungee Launch or Retracts (prepared)

All fine cnccut plywood and balsa self aligning building frame

Very easy build up wing

Hard to make fairings are vacuumformed for easy construction

A nice scale like build up rudder

Clear petg canopy with framing, is also the battery acces

Retracts can be fitted formers are in the kit and on the drawing there is a large range
Of retracts to choose most will fit without any problem, there are no hinges etc for the hatches
In the kit

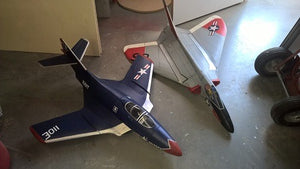

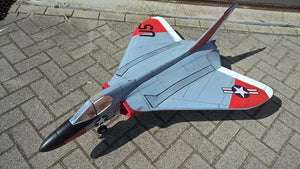

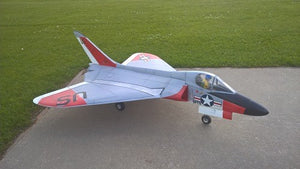

Nice wood build model
