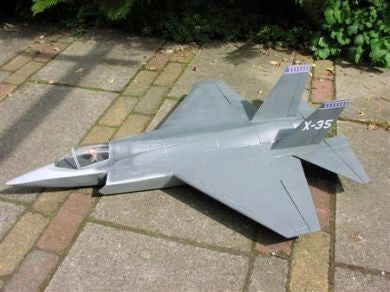

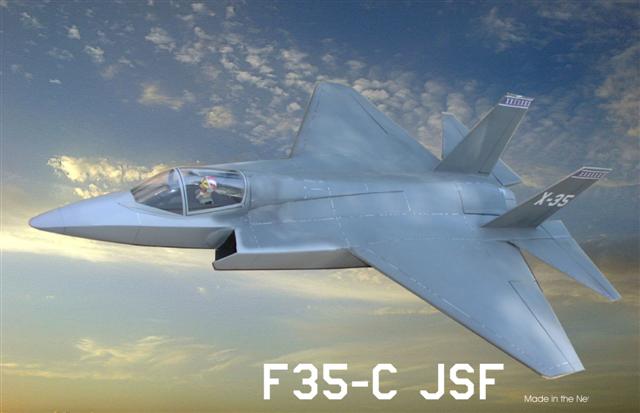

F-35C Joint Strike Fighter
- For mini fan 480 and 3-4S Lipo 3200
- Power req :Hetrc edf 2w or 2w-20 or 3W
- Controls: 2x servo
- Including: cad drawing, canopy , outlet,
- Photo instructions
Design Features:
- All Formers And Ribs CNC Cut
- Unique Tab Lock Design
- One Piece Design
- Easy Motor/Fan compartment Hatch
- Easy Battery Access through Hatch
Specifications:
- Wing Area: 19 dm2
- Wing Span; 700 mm
- Scale App 1:10
- Flight Weight: Starts at 1100 grams
- Wing Loading: 57gr dm2 to 75gr dm2
- 3 Channel Tailerons & Throttle (Tailerons needs delta mixer)
Kit Includes:
- Photo Instructions
- Full Size Rolled Cad Plans With All Parts Shown
- Vacuformed Canopy and Outlet
- PVC Outlet Tube
- No Control Horns , Steering Cables
Required to Complete:
- 3 Channel Radio with delta mixer
- Light weight Receiver:
- Light weight Servos: About 9 grams (2x)
- Motor: Hetrc edf 2W (3 lipo) or 2W-20(4 lipo)
- Speed controller 60-80 amps
- Wemotec Mini Fan 480 or Het 6904
- Battery: 3S or 4S 3200 lipo
- Thick and Thin CA glue
- Bungee Launch req.
- The F35-C needs a 8mmx7,5mtr bungee with 8kg of pulling power.
Now some building pictures for impression. A New Design from Luc Dietvorst.
![](https://www.rbckits.com/51480e00.jpg)
Nose section, ducts added
![](https://www.rbckits.com/50f80e00.jpg)
Framework with ducts
![](https://www.rbckits.com/51580e00.jpg)
Framework sheeting
![](https://www.rbckits.com/51680e00.jpg)
Motor hatch sheeting
![](https://www.rbckits.com/51080e00.jpg)
Traditional built up wings. Note that the F35 needs only taileron servo's
