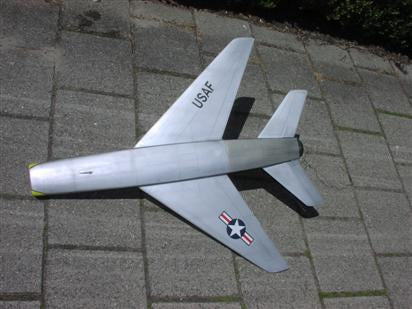

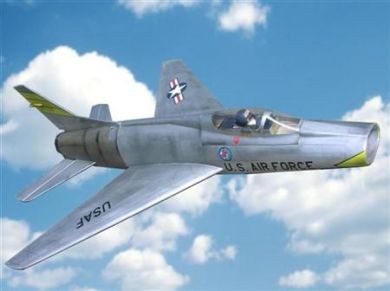

F100 "The Hun"

• For mini fan 480 and 10-12 cells gp2200
• Power req :Hetrc edf 2w or 2w-20 or 3W
• Controls: 3x servo
• Including: cad drawing, Canopy ,outlet
• Photo instructions and additional pictures on CD
• Wood build precision kit

Design Features:

• All Formers And Ribs CNC Cut
• Unique Tab Lock Design
• One Piece Design Easy transportation
• Motor/Fan compartment Easy accesable
• Battery Acces Through Canopy

Specifications:

• Wing Area: 17 dm2
• Wing Span; 810 mm
• Flight Weight: Starts at 1100 grams
• Wing Loading: 47gr dm2 to 66gr dm2
• 3 Channel Tailerons & Throttle

Kit Includes:

• Photo Instructions
• Full Size Rolled Cad Plans With All Parts Shown
• Vacuformed Canopy and Outlet
• PetG Intake Tube , PetG Outlet Tube
• No Control Horns , Steering Cables Ball links

Required to Complete:

• 3 Channel Radio.
• Light weight Receiver:
• Light weight Servos: About 9 grams (2x)
• Motor: Hetrc edf 2W (3 lipo) or 2W-20(4 lipo)
• Speed controller 60-80 amps
• Wemotec Mini Fan 480 or Het 6904
• Battery: 3S or 4S 3200 lipo
• Thick and Thin CA glue
• Bungee Launch req.
• The F100 needs a 8mmx7,5mtr bungee with 8kg of pulling power.

Here are some building pictures.

Classic building fuselage

Removable tail section

Classic wings also very easy.

Easy fan access
