F-84 Thunderstreak

Regular price €293,00 Sale price €283,00

For 90mm Midi fan Evo edf and 8 cells 5000 (a FMS unit or equ will not work in rbckits edf jets)


The F84 is very easy to fly and lands slow as a trainer

Very nice movie and beatifull finished F84 From Marc Caris

Design Features:

  • All Formers And Ribs 194 cnccut parts in balsa and ply
  • Unique Tab Lock Design
  • Removable wings for easy transportation and Storage

Specifications:

  • Wing Area: 48 dm2
  • Wing Span; 1290 mm
  • Lenght :1688mm
  • Flight Weight: Starts at 4800 grams
  • 6 Channel , Ailerons,elevator,Throttle,Retracts, flaps,nosewheel steering

Kit Includes:

  • Photos and Instructions on CD
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy,inlet lip,Paper Exhaust ducting
  • Paper inlet ducting
  • All wood and sheeting to make the F84
  • There is no hardware in the F84

Required to Complete:

  • Any 7 Channel Radio
  • Light weight Receiver:
  • Servos: About 13 grams metal gear 7pcs
  • Motor: Hetrc EDF650/681600 8s
  • Wemotec Midi fan Evo 90mm
  • Battery:8S lipo 5000ma
  • Thick and Thin CA glue, 3/3

Small parts screws etc are not in kit:a list of parts is included

Now some building pictures:

Wing classic build wood ribs and formers sheeted

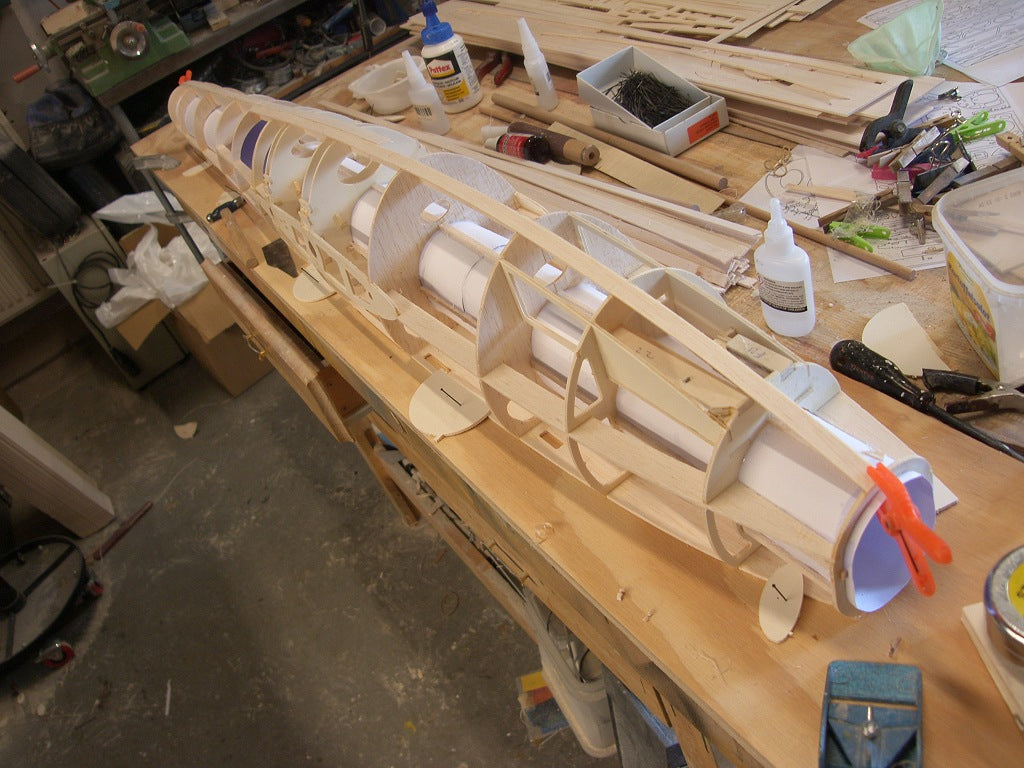

Fuselage formers and strip planking  easy to do

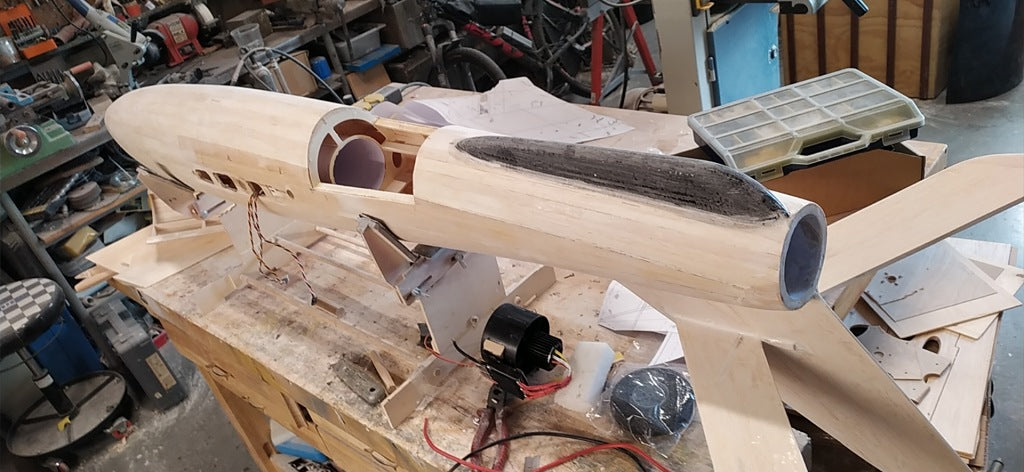

Paper in and outlet tubing simple and effective

strip planking not very hard but some work.

Canopy has seat formers included to make it looks

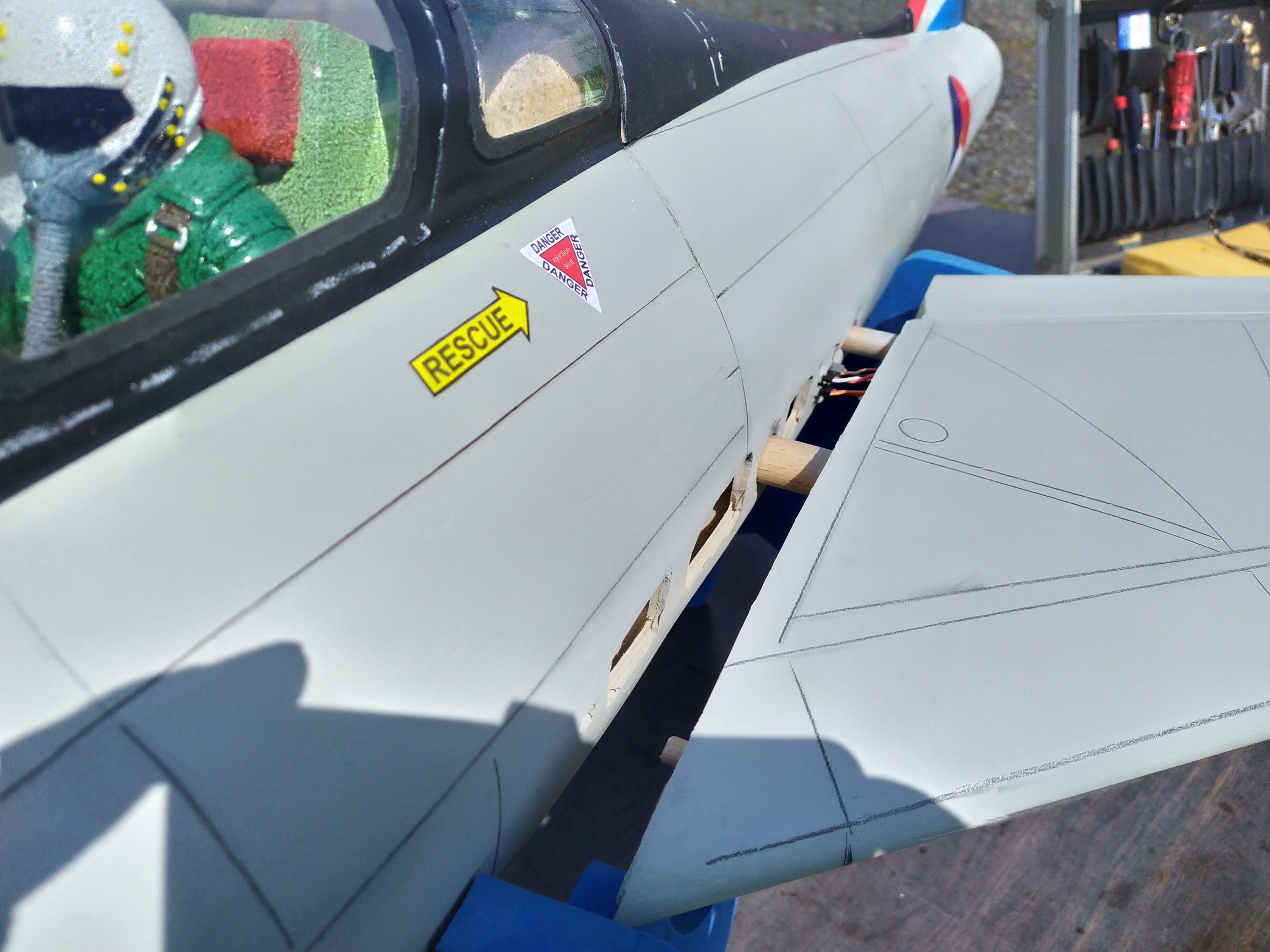

Wings are slide in with wooden dowels , very strong and easy.

All designed to take retracts

Many more picture and build steps on the included cd where more in detail is shown.
The kit has also a canopy interior seat for a pilot (pilot not included)
