The Avia is Easy Flying, as a low wing trainer acrobatic too
- Scale model of the famous Avia BH3 Warbird
- All wood construction.
- Vacuum formed Cowl,Headrest,Spinner,Pilot,small parts ,
- included, pre bend landingear

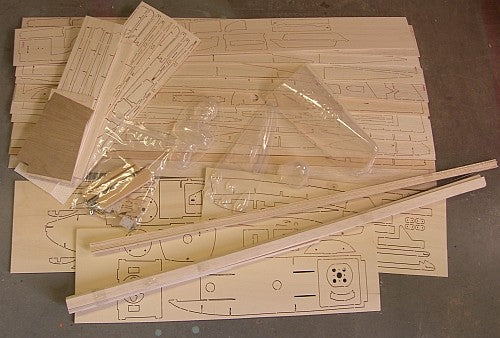

- Easy building kit all parts cnc cut
- The Avia is a great flyer with the NTM 42-48 motor and 3-4 lipo cells 3700-4500
- Scale 1:6
Design Features:
- All Formers And Ribs CNC Cut
- Unique Tab Lock Design
- Two Piece Design Easy transportation
- Motor/Battery compartment Easy accesable
- Battery Acces Through cowl opening
Specifications:
- Wing Area: 40 dm2
- Wing Span; 1500 mm
- Flight Weight: Starts at 2300 grams
- Wing Loading: 55gr dm2
- 4 Channel Controls
Kit Includes:
- Photo Instructions on CD and Many more Pictures
- Full Size Rolled Cad Plans With All Parts Shown
- Vacuformed Cowl,Spinner,Pilot
- Pre Bend Landing Gear.
- No Control Horns, Steering Cables, Hinges
Required to Complete:
- 4 Channel Radio.
- Light weight Receiver:
- Light weight Servos: About 13grams (2x ailerons ) to 30 grams (elevator and rudder)
- Motor: type 35 to 42 650kv
- 35-75 amp controller
- Some paint,foil finish
- Main wheels oldtimer 120mm
- Battery: 4S 3200 to 5000 lipo
- Thick and Thin CA glue 4-6 bottles
- Grass or concrete airfield
Some building pictures here.
Nicely build up stabilizers and wing.
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/1_Avia3__02_.JPG)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/1_Avia3__34_.JPG)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/1_Avia3__69_.JPG)
Mostly balsa and ply fuselage , nice and easy building
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/1_Avia3__08_.JPG)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/1_Avia3__86_.jpg)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/SH105332.JPG)
Spinner in the kit included.
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/SH105339.JPG)
Cowl also, small parts do it yourself to nice it up.
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/SH105338.JPG)

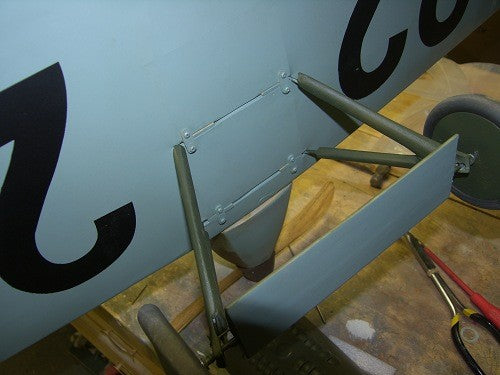

Functional struts are very easy assembled just hook in and place cowl .. ready.
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/SH105356.JPG)
Pilot included in the kit also , you need some work to have it like this.
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/1_Avia3_a__287_.JPG)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/WP_20151212_001.jpg)
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/WP_20151212_005.jpg)
Even on special request a float version is available
![](https://www.rbckits.com/shop/images/source/rbc_warbirds/aviabh3/Avia_met_Drijvers__34_small.jpg)
