Monoprep

€169,00

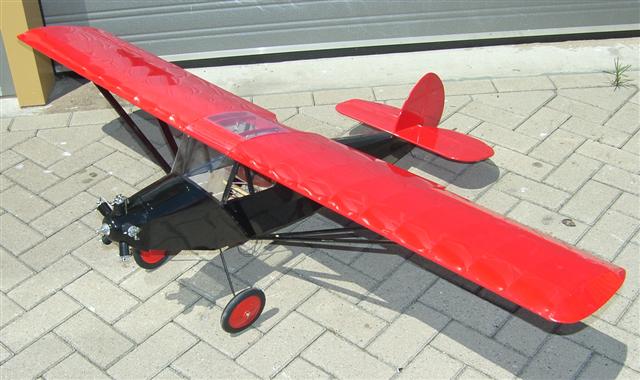

The Monoprep 1929
Sport scale model inspired by Doc Mathews
The 1929 Monoprep from Mono Aircraft

A balsa dream to build and it is very easy to build, flies like a dream slow and beautiful

Design Features:

All Formers And Ribs CNC Cut
Unique Tab Lock Design
4 Piece Design, stick on wings
Easy Battery Acces through removable Hatch

Specifications:

Wing Area: 50.5 dm2
Wing Span; 1818 mm
Flight Weight: Starts at 1950 grams
Wing Loading: 50gr dm2 to 65gr dm2
4 Channel Elevator,Rudder, Ailerons & Throttle

Kit Includes:

Photo Instructions on CD
Full Size Rolled Cad Plans With All Parts Shown
All balsa and stringers To Complete The Monoprep
Control Horns , Steering Cables, landing gear (no wheels), vacuumformed cowl and dummy cylinders included

Required to Complete:

4 Channel Radio
Light weight Receiver:
Light weight Servos: 4 x 26 grams
Motor: a Suppo 3520 type or Hetrc Xtreme 3826 810 kv
Electric Speed Controller 40--70 amps depending on the prop and lipo
Prop 12x6..14x68 apc thin electric We used a 12x6 for 26 amps
Battery:3 lipo cells 3500 to 5000 ma
Thick and Thin CA glue, Wheels 5" type Oldtimer

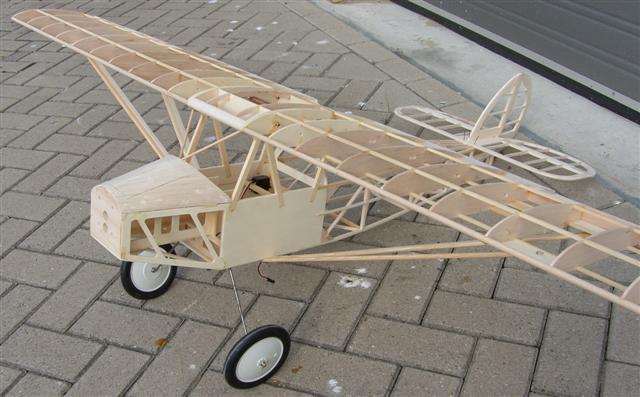

Sides are made from cnc cut parts and spruce and balsa stringers, very light

Motor Battery compartment

Battery hatch
