Viejo

Regular price €59,00

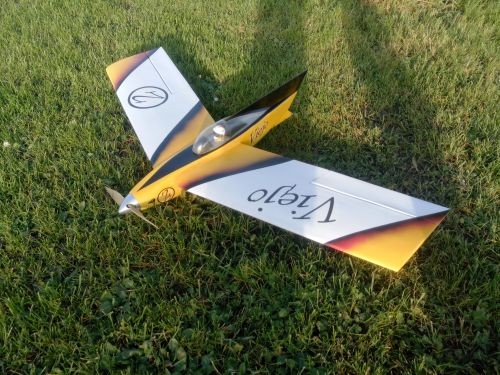

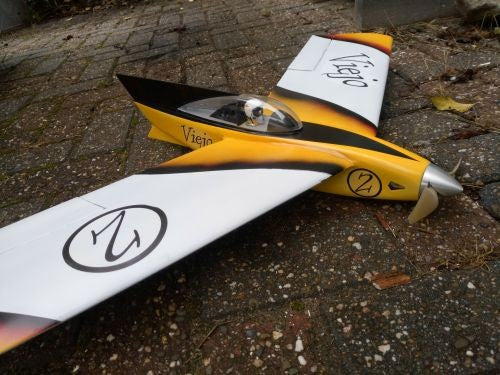

Flying wing Fun Flyer as a mate for the Chica
Fast and nimble easy flying and a lot of fun

Design Features:

  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • One Piece Design Easy transportation
  • Motor/Battery compartment Easy accesable
  • Battery Acces Through hatch opening

Specifications:

  • Wing Area: 16 dm2
  • Wing Span; 890 mm
  • Flying Weight: Starts at 650 grams
  • Wing Loading: 41gr dm2
  • 3 Channel Controls

Kit Includes:

  • Full Size Rolled Cad Plans With All Parts Shown
  • Control Horns , Steering Cables,picture download small hardware
  • Clear Canopy and instr panel

Required to Complete:

  • 4 Channel Radio.
  • Light weight Receiver
  • Light weight Servos: About 12grams (2x ailevons)
  • Motor: type :
    • 1400kv 36mm motor 8x6 prop
    • Suppo A2814-6 1400kv
    • Turnigy C3542-1450KV
    • Or use a edf 3w/4w and a 5x5 prop for flat out speed
  • 30 amp controller
  • Some paint,foil finish
  • 38/40mm spinner
  • Battery: 3S 2200 lipo
  • Pva glue,Ca glue
  • Grass airfield.


The Viejo is Easy Flying and Fast,

Instructions Viejo download here use save as and use winrar or 7zip to unpack

Building is easy on a small workplate

Easy Battery acces through hatch

You have to obtain a pilot head yourself

Lettering is included as a jpg so you can print them yourself
