Micro Horten

Regular price €58,00

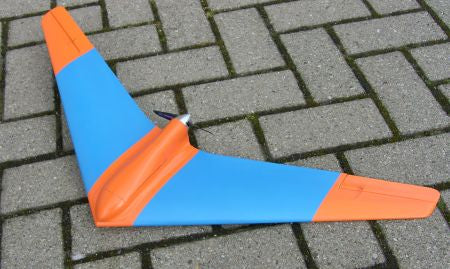

Micro Horten - A Horten type "flying wing"
Fast building and fast flying. The Micro Horten is small in size but makes up for this with very high speeds.
For 2212 type and 3s1300

Design Features:

  • All Formers And Ribs CNC Cut
  • Unique Tab Lock Design
  • One Piece Design Easy transportation
  • Motor compartment Easy accesable
  • Battery Acces Through Canopy

Specifications:

  • Wing Area: 8,5 dm2
  • Wing Span; 750mm
  • Flying Weight: Starts at 300 grams
  • Wing Loading: 35gr dm2
  • 3 Channel ailerons & Elevator &Throttle (ailevons mixed)

Kit Includes:

  • Photo and Instructions on cd
  • Cad drawing
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy
  • Ply Building Jig
  • Control Horns , Steering Cables , CG Tool

Required to Complete:

  • 3 Channel Radio.
  • Light weight Receiver
  • Light weight Servos: About 9 grams (2x) 2x12 grservo
  • Motor: Suppo 2212 2200kv -- 2700kv
  • Speed controller 30 amps
  • Spinner 30mm
  • Battery: 3S or 1300 lipo
  • Thick and Thin CA glue
  • The Micro Horten can be handlaunched, but a bungee is way easier
  • The Micro Horten might use a 8mmx7,5mtr bungee with 2-4kg of pulling power

The Ply building jig assures that the horten is true build

Place the wing sheeting , these are also cnccut

and then place the ribs etc etc  all cnc cut very easy

Finishing the frame with servos

And then making it all fit and  finish with 25gr glass

and then
