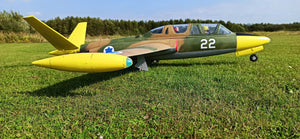

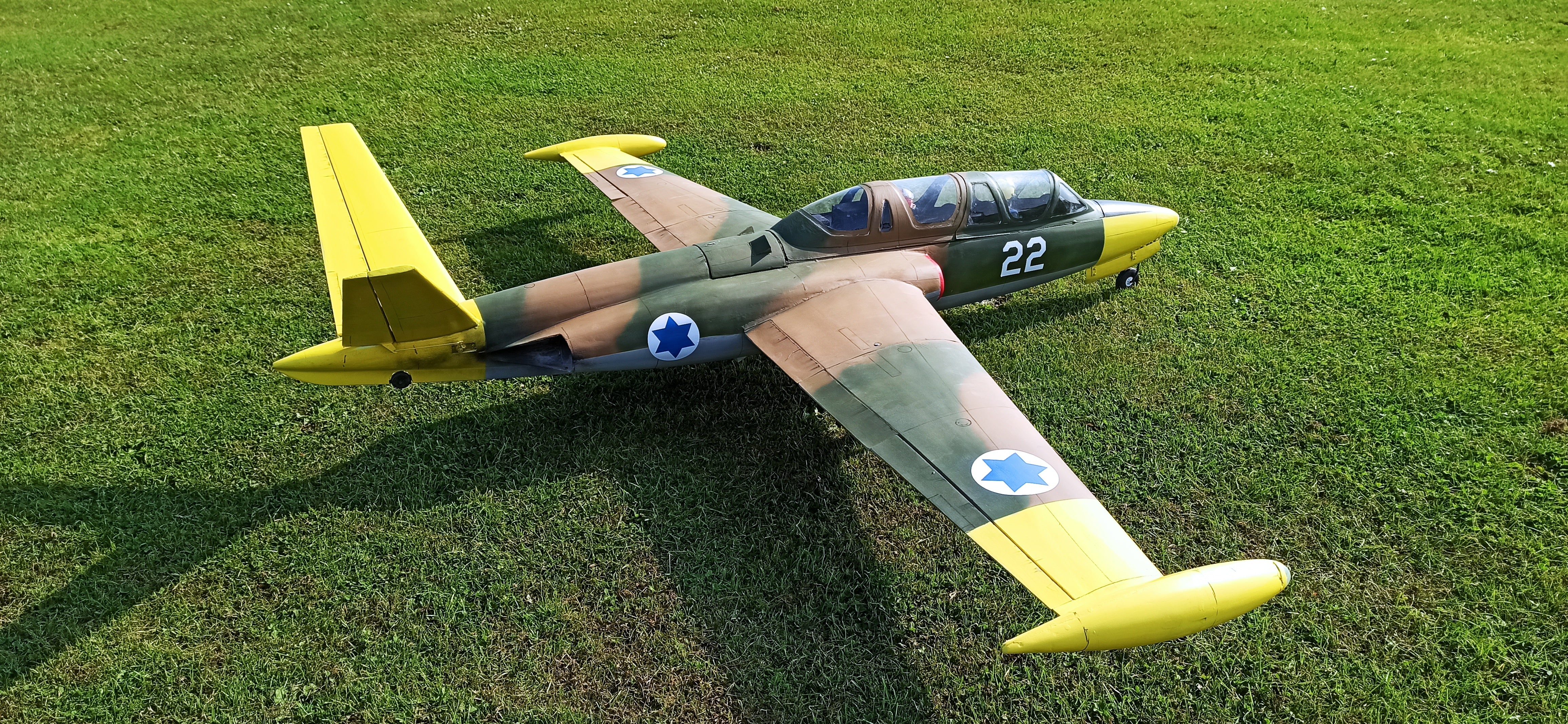

Fouga Magister

Regular price €293,00 Sale price €284,00

For 90mm Midi fan Evo edf and 8-10 cells 5000 (a FMS unit or equ will not work in rbckits edf jets)

The Fouga Magister is very easy to fly but not for beginners.

Full pictures and instructions download here




Design Features:

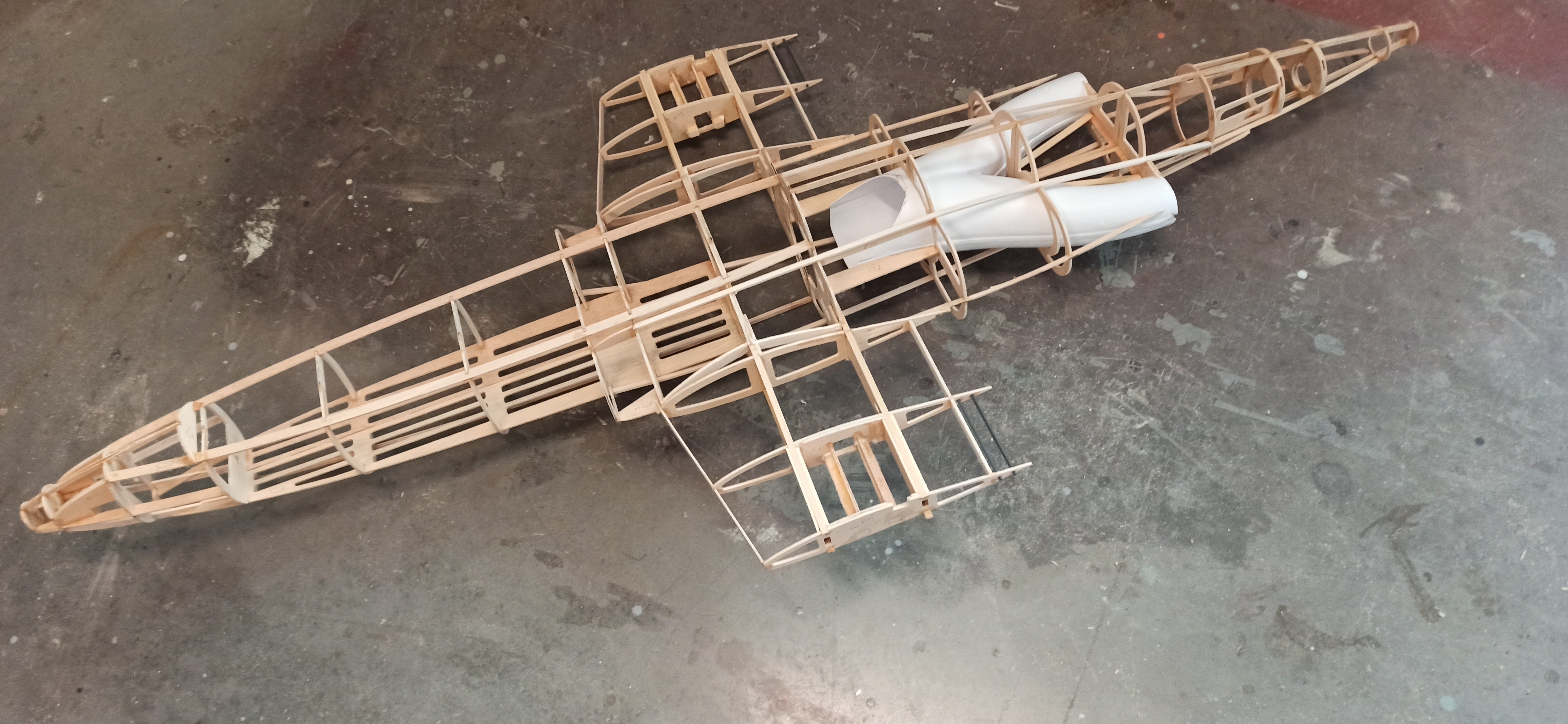

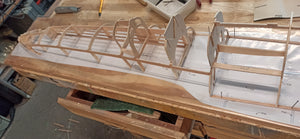

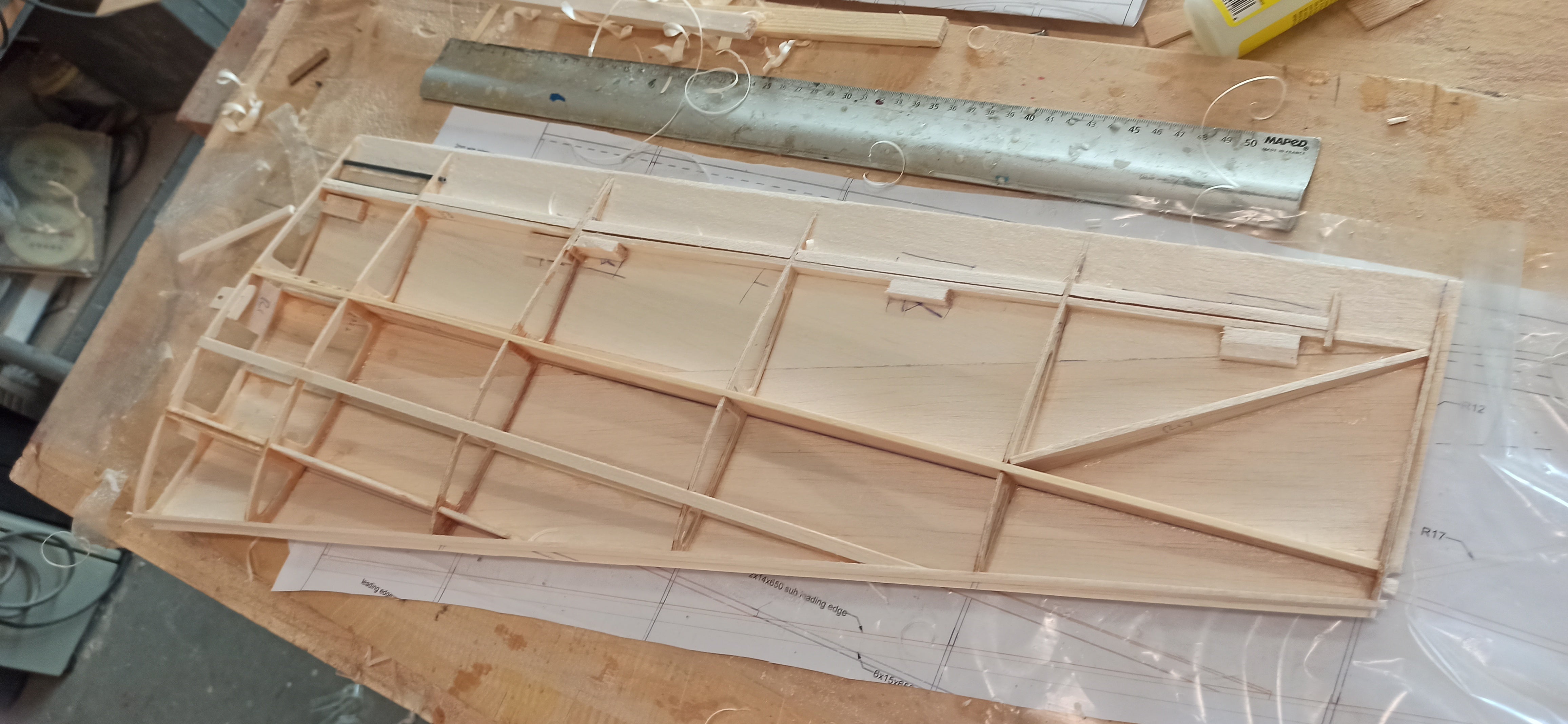

  • All Formers And Ribs 238 cnccut parts in balsa and ply
  • Unique Tab Lock Design
  • Removable wings for easy transportation and Storage

Specifications:

  • Wing Area: 48,5 dm2
  • Wing Span; 1990 mm
  • Lenght :1644mm
  • Flight Weight: Starts at 4990 grams

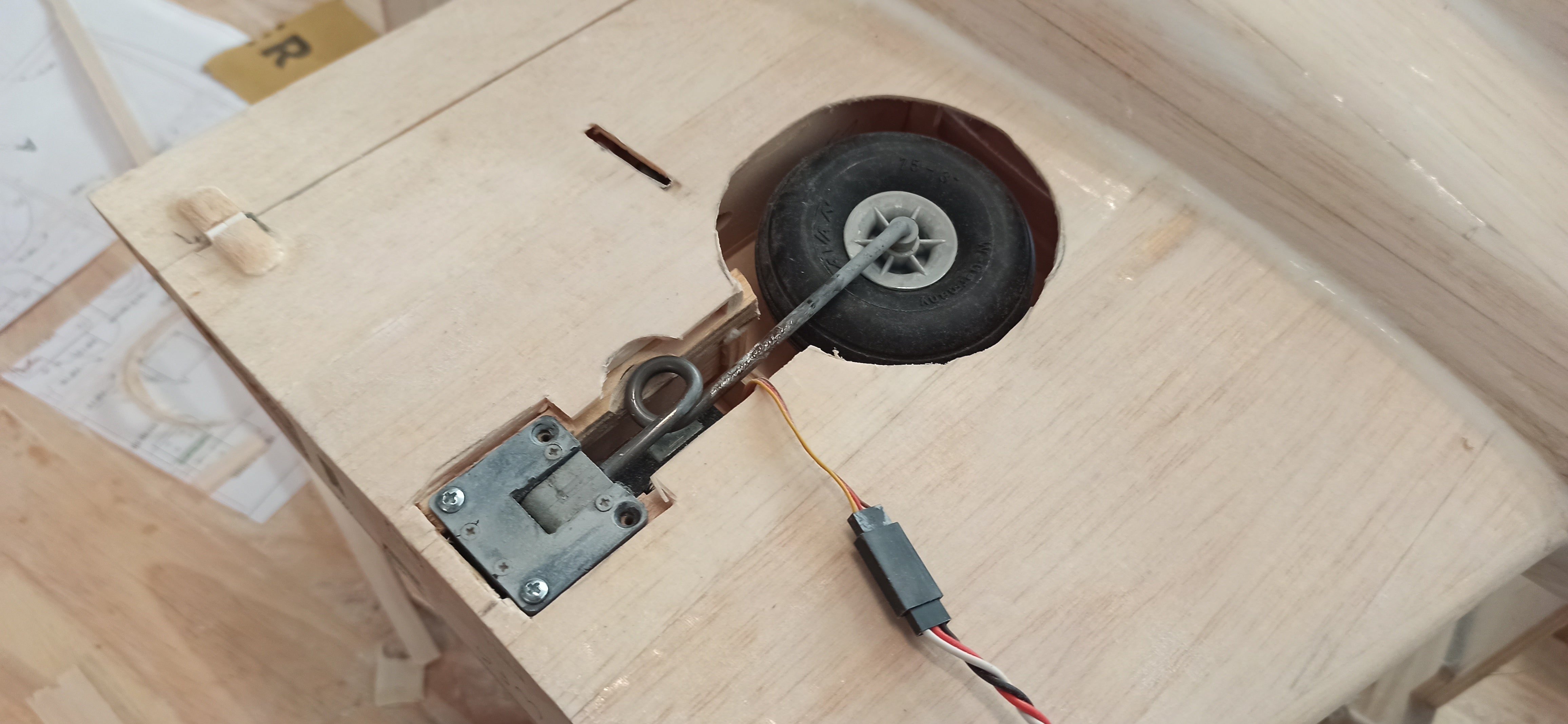

  • 6 Channel , Ailerons,elevator,Throttle,Retracts, flaps,nosewheel steering,rudder (v-Tail mix)

Kit Includes:

  • Photos and Instructions download
  • Full Size Rolled Cad Plans With All Parts Shown
  • Vacuformed Canopy, nosecone, vacuumformed Exhaust ducting ,Paper inlet ducting
  • All wood and sheeting to make the Fouga 6 sheets of balsa sheeting 12 sheets of lite ply
  • and spruce and balsa stringers
  • 189 cnc cut ply parts and 49 cnccut balsa parts
  • There is no hardware in the Fouga Magister like hinges and horns etc

Required to Complete:

  • Any 8 Channel Radio
  • Light weight Receiver:
  • Servos: About 13 grams metal gear flaps needs stronger type 30gr
  • Motor: Hetrc EDF650/68/1500 8s or better and more power the 1600KV
  • Wemotec Midi fan Evo 90mm

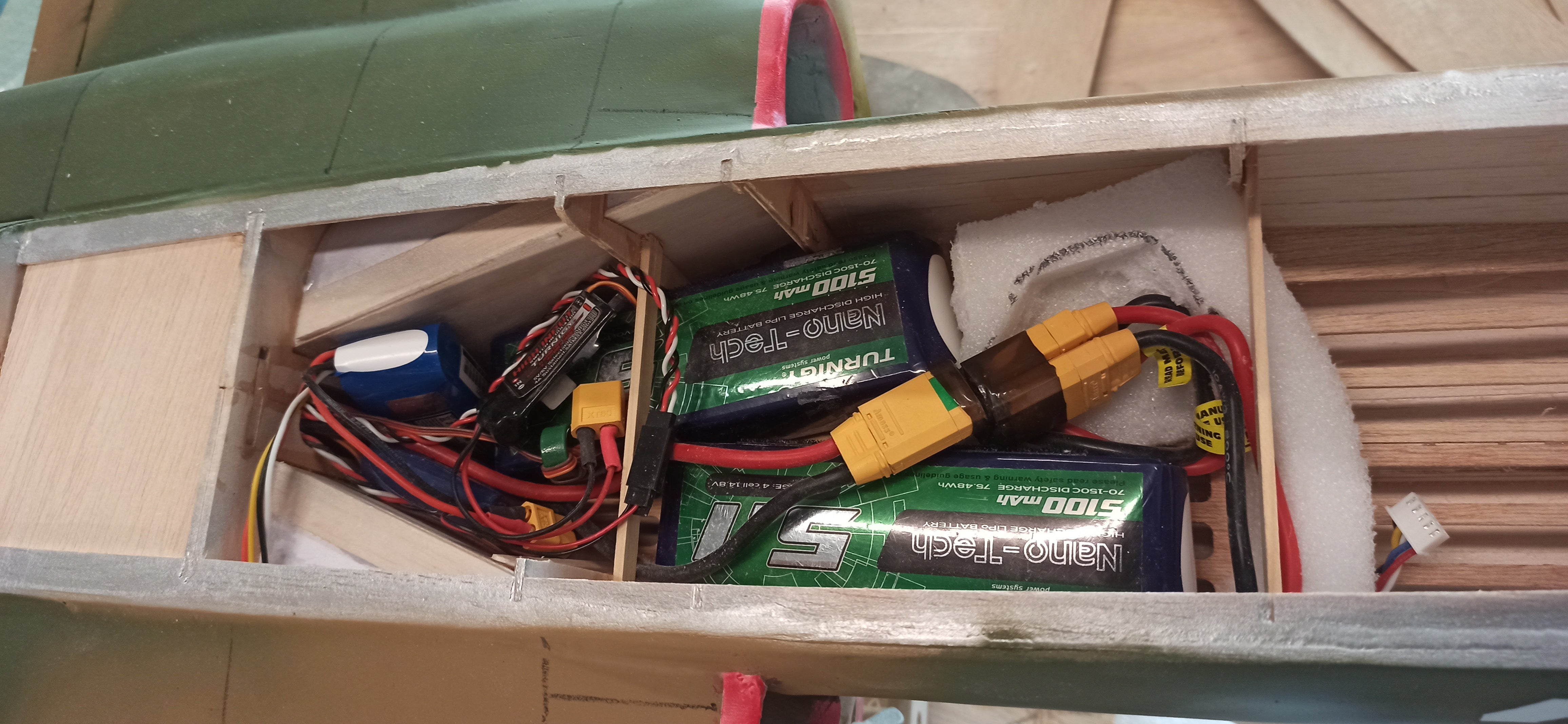

  • Battery:8S lipo 5000ma note for size
  • Thick and Thin CA glue, 3/3
  • Small parts screws etc are not in kit ; a list of parts is included
